Selector Lever Handle With Selector Level Boot, Selector Lever Scale Illumination Bulb (L101) Overview, From 11.2009

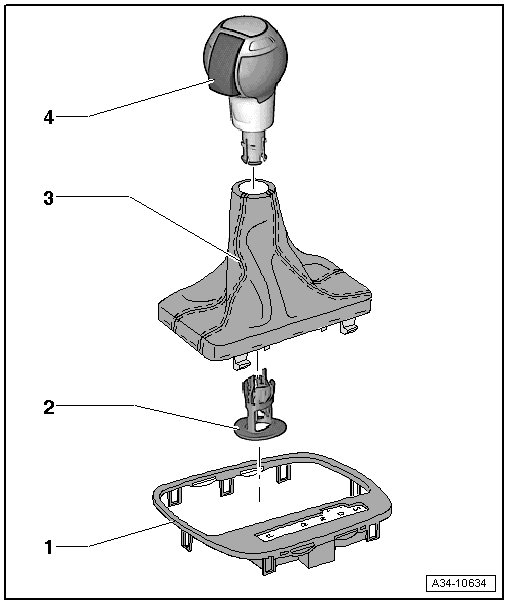

Selector Lever Handle with Selector Level Boot, Selector Lever Scale Illumination Bulb (L101) Overview, from 11.2009






1 Cover Frame with Selector Lever Scale Illumination Bulb (L101)

• Refer to => [ Selector Lever Scale Illumination Bulb (L101) ] Selector Lever Scale Illumination Bulb (L101)

2 Guide

3 Selector Lever Boot

• Refer to => [ Separate Selector Lever Boot from Selector Level Handle ] Separate Selector Lever Boot From Selector Level Handle

4 Selector Lever Handle

• Refer to => [ Selector Lever Handle ] Selector Lever Handle

• Refer to => [ Attach Lock Button on the Handle for the Selector Lever ] Attach Lock Button on the Handle For the Selector Lever
