Mounting Bracket With Frequency Damper

Mounting Bracket with Frequency Damper

Removing

- Remove the steering column. Refer to => [ Steering Column ] Steering Column.

- Remove the plenum chamber cover.

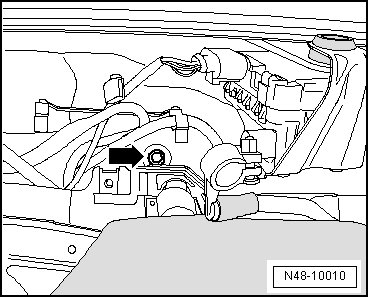

- Remove bolt - arrow - in plenum chamber.

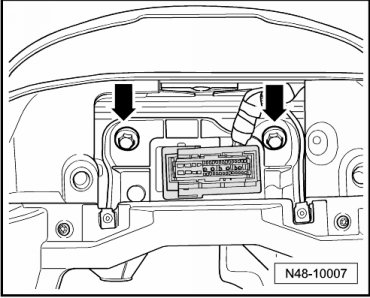

- Remove bolts - arrows -.






- Remove the bolts - arrows -.






- Mounting bracket with frequency damper can now be removed from body.

Installing






- Insert the mounting bracket, position all four bolts and tighten them to the specification.

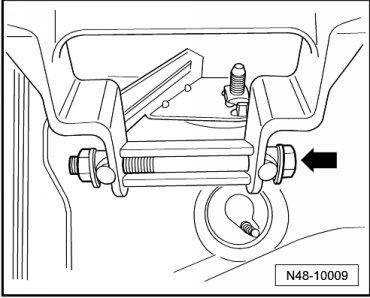

- Secure the strut to the body by tightening the bolt - arrow - to the specification.

- Tighten the bolt - arrow - for the bracket/frequency damper to the tightening specification.






- Tighten the bolt.

Further installation is in the reverse sequence to removal.
