A3 (8PA) L4-2.0L DSL Turbo (CBEA)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>

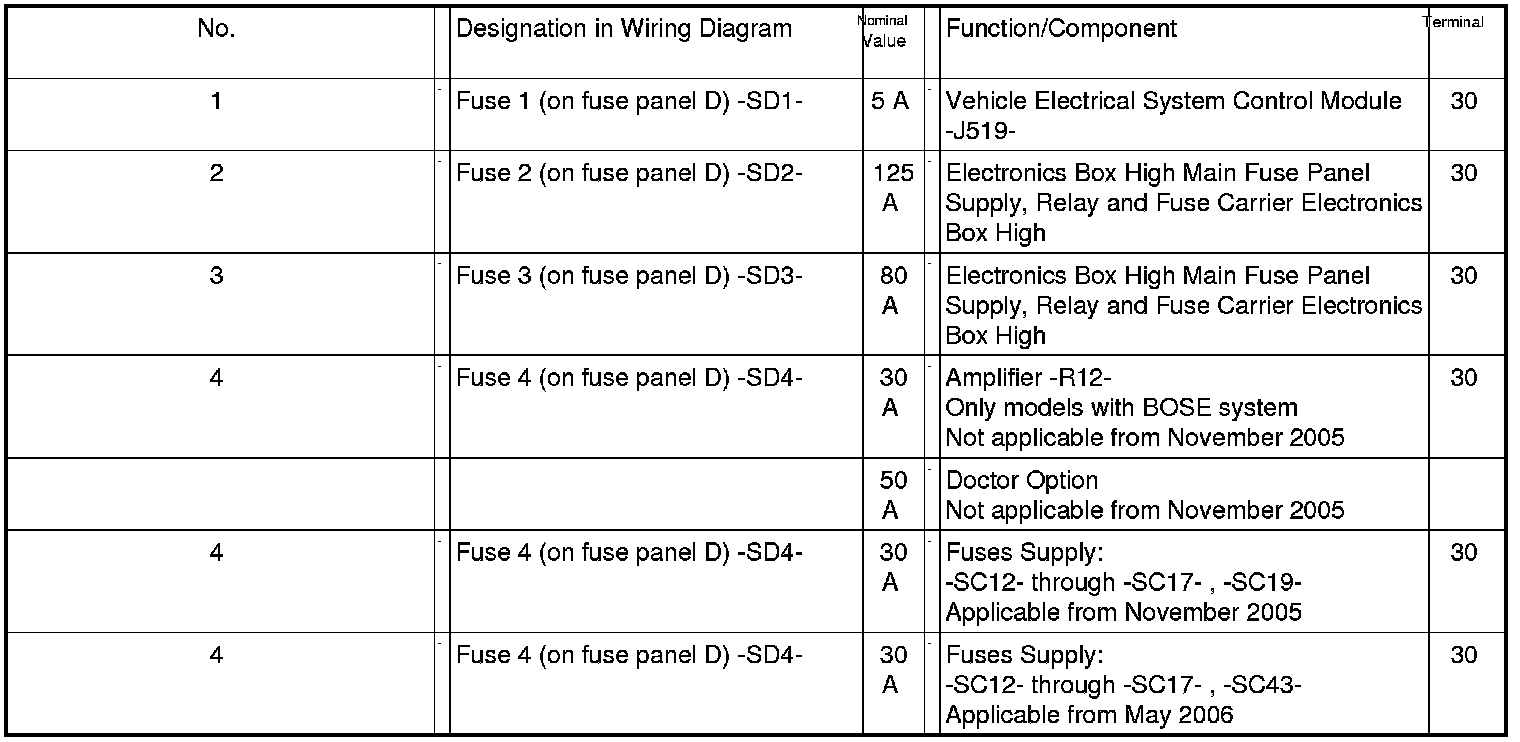

Position Of Fuses On Main Fuse Panel, from MY 06
Position Of Fuses On Main Fuse Panel, from MY 06
Fuses
Position of fuses on main fuse panel, from model year 2006
