Model Year 2007-Up

Fuses

Overview of Fuses

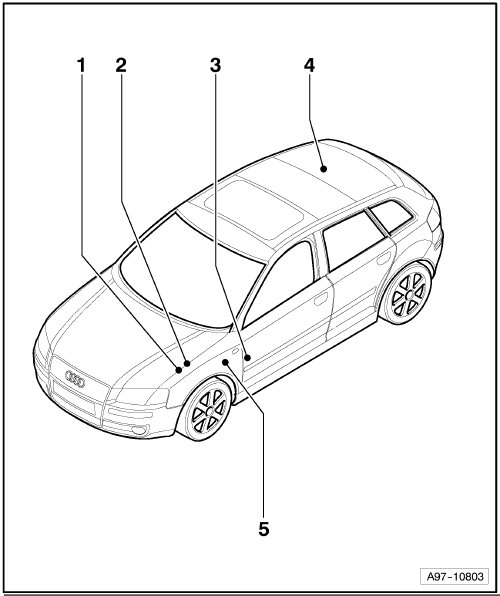

1 - Fuse Panel A -SA-
• Location Main Fuse Panel, Electronics Box Low, from model year 2006 => [ Main Fuse Panel: Location on electronics box Low, from model year 2006 ] Main Fuse Panel: Location Fuse Panel A -SA- On Electronics Box Low, from MY 06
• Position of Fuses Main Fuse Panel, Electronics Box Low, from model year 2006 => [ Fuse Arrangements Electronics Box Low, from model year 2006 ] Fuse Arrangements Electronics Box Low, from MY 06
• Position of Fuses Main Fuse Panel, Electronics Box Low, from model year 2007 => [ Fuse Arrangements Electronics Box Low, from model year 2007 ] Fuse Arrangements Electronics Box Low, from MY 07
• Location Main Fuse Panel, Electronics Box Low, from November 2008 => [ Main Fuse Panel: Location on electronics box Low, from November 2008 ] Main Fuse Panel: Location Fuse Panel A -SA- On Electronics Box Low, from Nov 2008
• Position of Fuses Main Fuse Panel, Electronics Box Low, from November 2008 => [ Fuse Arrangements Electronics Box Low, from November 2008 ] Fuse Arrangements Electronics Box Low, from Nov 2008
• Location Main Fuse Panel, Electronics Box High => [ Main Fuse Panel: Location on electronics box High ] Main Fuse Panel: Location Fuse Panel A -SA- On Electronics Box High
• Position of Fuses Main Fuse Panel, Electronics Box High, from model year 2004 => [ Fuse Arrangements Electronics Box High, from model year 2004 ] Fuse Arrangements Electronics Box High, from MY 04
• Position of Fuses Main Fuse Panel, Electronics Box High, from model year 2005 => [ Fuse Arrangements Electronics Box High, from model year 2005 ] Fuse Arrangements Electronics Box High, from MY 05
• Position of Fuses Main Fuse Panel, Electronics Box High, from model year 2006 => [ Fuse Arrangements Electronics Box High, engine codes AXX, BWA, BPY, BHZ, BZC, CDLA, CDLC, from model year 2006 ] Fuse Arrangements Electronics Box High, engine codes AXX, BWA, BPY,BHZ, BZC, CDLA, CDLC, from model year 2006

2 - Fuse Panel B -SB-
• Location Electronics Box Low => [ Location on electronics box Low, in left engine compartment ] Location Fuse Panel B -SB- on electronics box Low, in left engine compartment
• Fuse Arrangements Electronics Box Low, from model year 2006 => [ Fuse Arrangements Electronics Box Low, from model year 2006 ] Fuse Arrangements Electronics Box Low, from MY 06
• Fuse Arrangements Electronics Box Low, from model year 2007 => [ Fuse Arrangements Electronics Box Low, from model year 2007 ] Fuse Arrangements Electronics Box Low, from MY 07
• Location Electronics Box High => [ Location on electronics box High, engine compartment, left ] Location Fuse Panel B -SB- on electronics box High, engine compartment, left
• Position of Fuses Electronics Box High, from model year 2004 => [ Fuse Arrangements Electronics Box High, from model year 2004 ] Fuse Arrangements Electronics Box High, from MY 04
• Position of Fuses Electronics Box High, from model year 2006 => [ Fuse Arrangements Electronics Box High, from model year 2006 ] Fuse Arrangements Electronics Box High, from MY 06
• Position of Fuses Electronics Box High, from model year 2007 => [ Fuse Arrangements Electronics Box High, from model year 2007 ] Fuse Arrangements Electronics Box High, from MY 07

3 - Fuse Panel C -SC-
• Location => [ Location , under instrument panel, left ] Location Fuse Panel C -SC- , Under Instrument Panel, Left
• Position of Fuses, from model year 2004 => [ Position of fuses on fuse panel, from model year 2004 ] Position Of Fuses On Fuse Panel, from MY 04
• Position of Fuses, from model year 2006 => [ Position of fuses on fuse panel, from model year 2006 ] Position Of Fuses On Fuse Panel, from MY 06
• Position of Fuses, from model year 2007 => [ Position of fuses on fuse panel, from model year 2007 ] Position Of Fuses On Fuse Panel, from MY 07

4 - Fuse panel D -SD-
• Location Main Fuse Panel => [ Main fuse panel: Location in luggage compartment, right rear ] Main Fuse Panel: Location Fuse Panel D -SD- in Luggage Comp., RR
• Position of Fuses Main Fuse Panel, from model year 2004 => [ Position of fuses on main fuse panel, from model year 2004 ] Position Of Fuses On Main Fuse Panel, from MY 04
• Position of Fuses Main Fuse Panel, from model year 2006 => [ Position of fuses on main fuse panel, from model year 2006 ] Position Of Fuses On Main Fuse Panel, from MY 06

5 - Fuses under instrument panel, left
• Component: -S37- , -S280- , -S131-
• Position of Fuses, from model year 2004 => [ Fuses under instrument panel, left ] Fuses Under Instrument Panel, Left
