Fuse Arrangements Electronics Box Low, from MY 07













Fuses

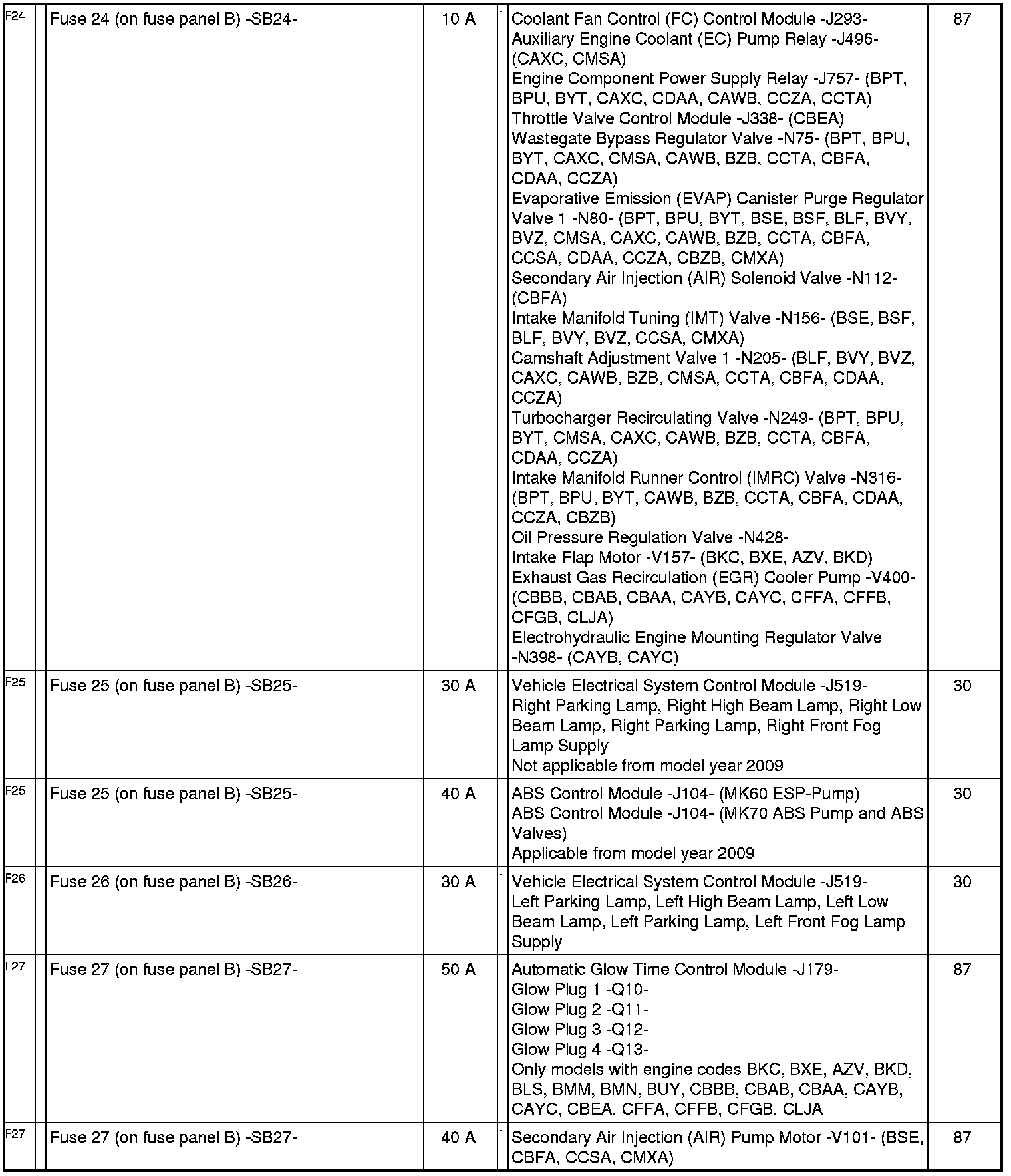

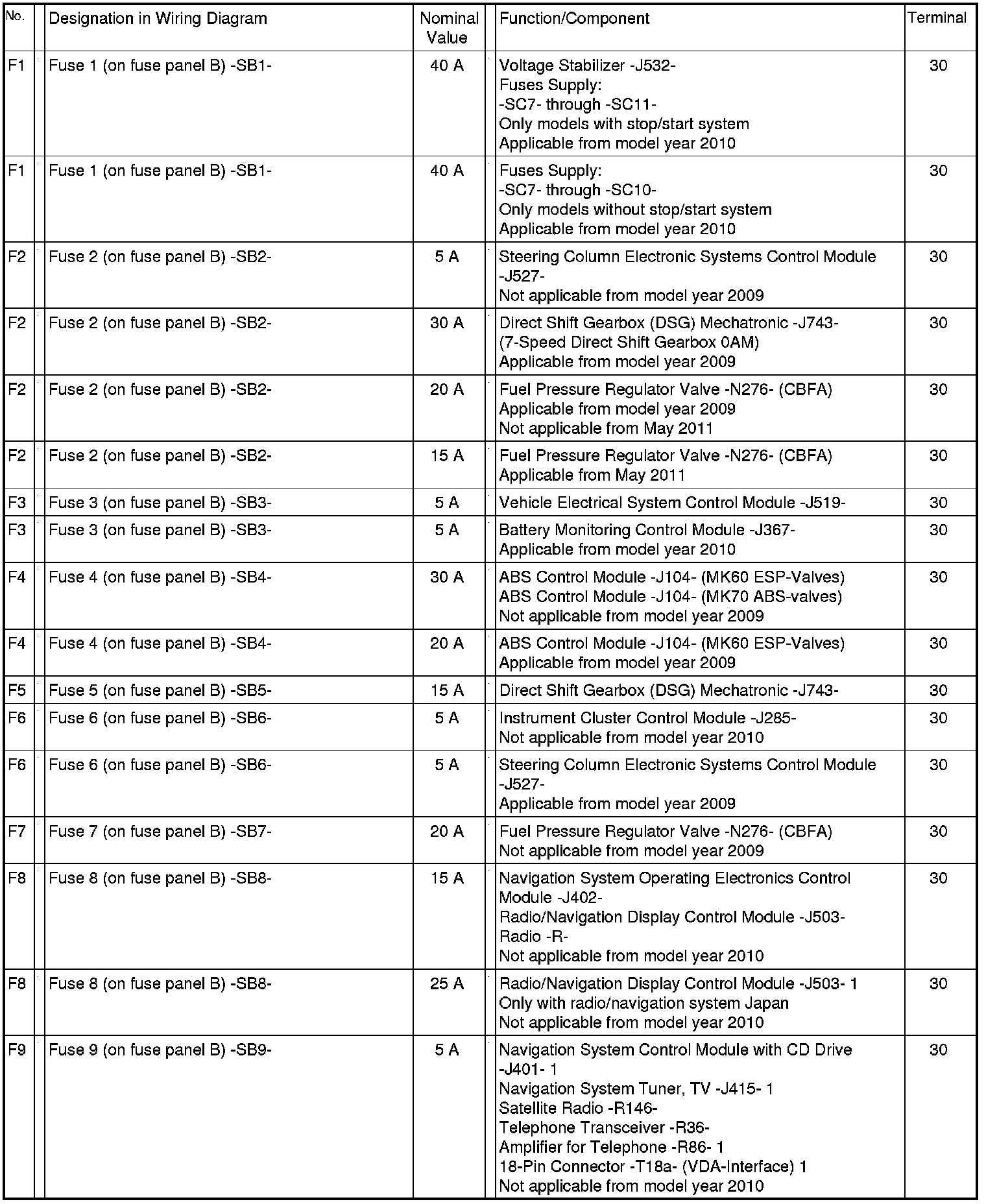

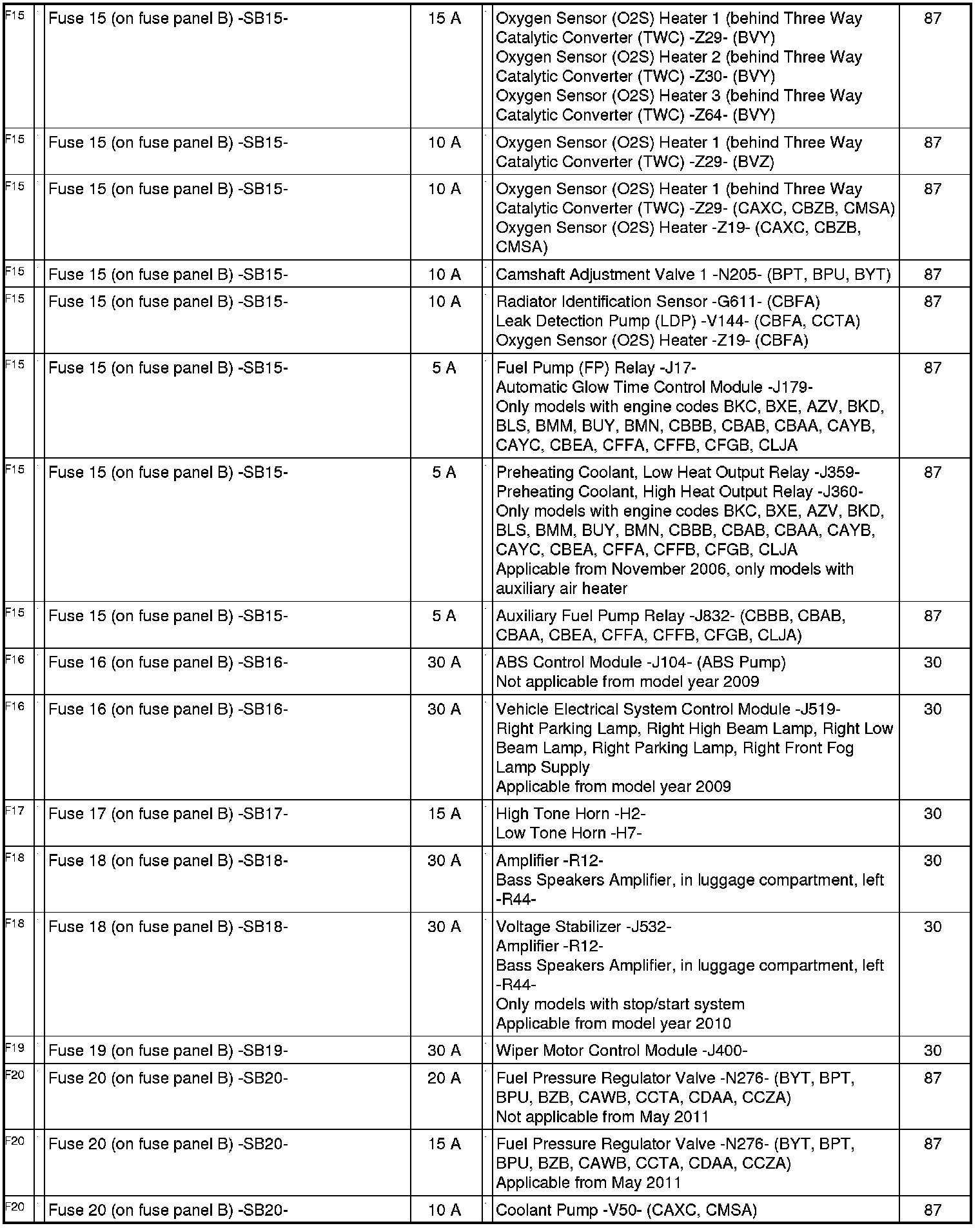

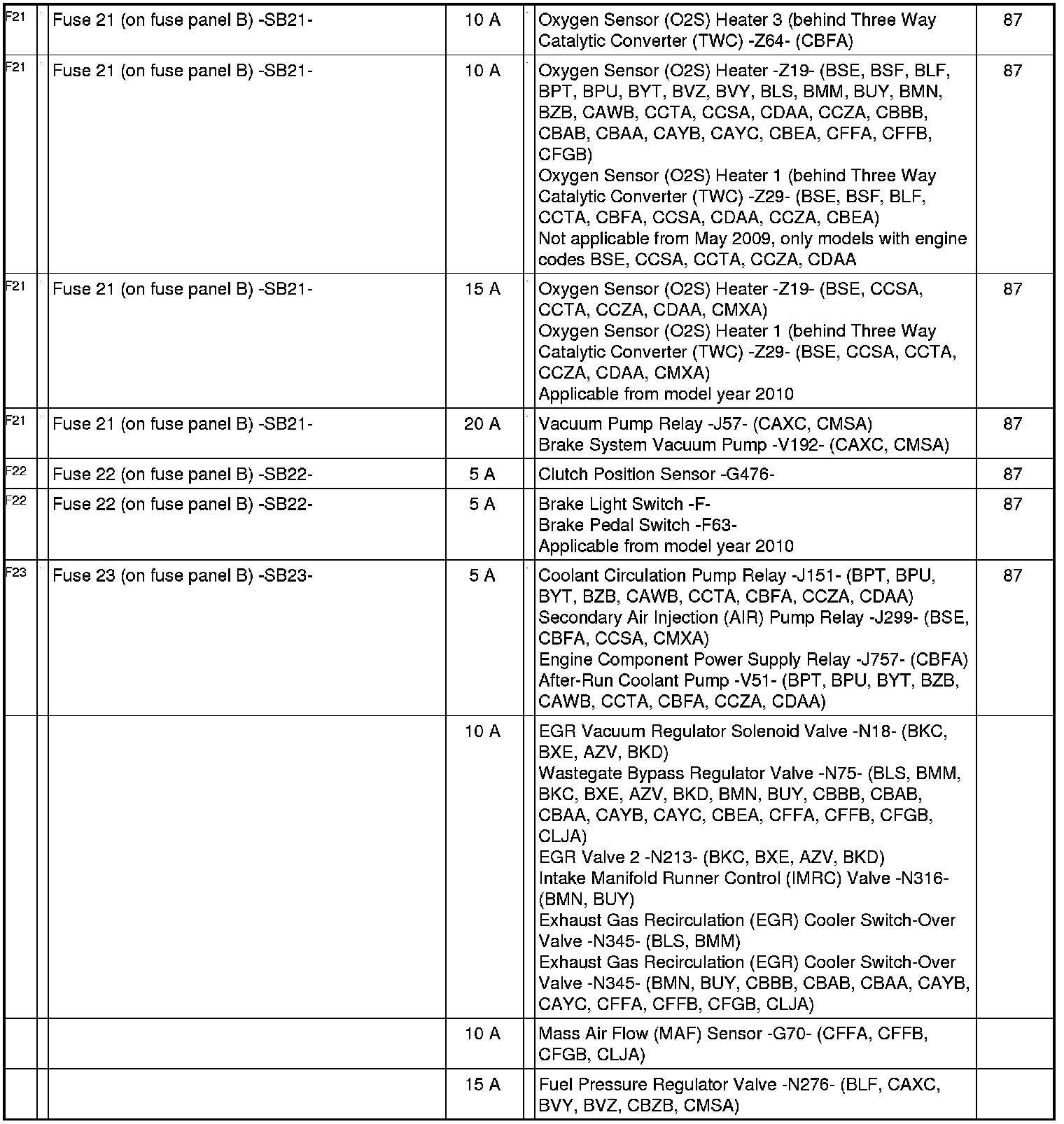

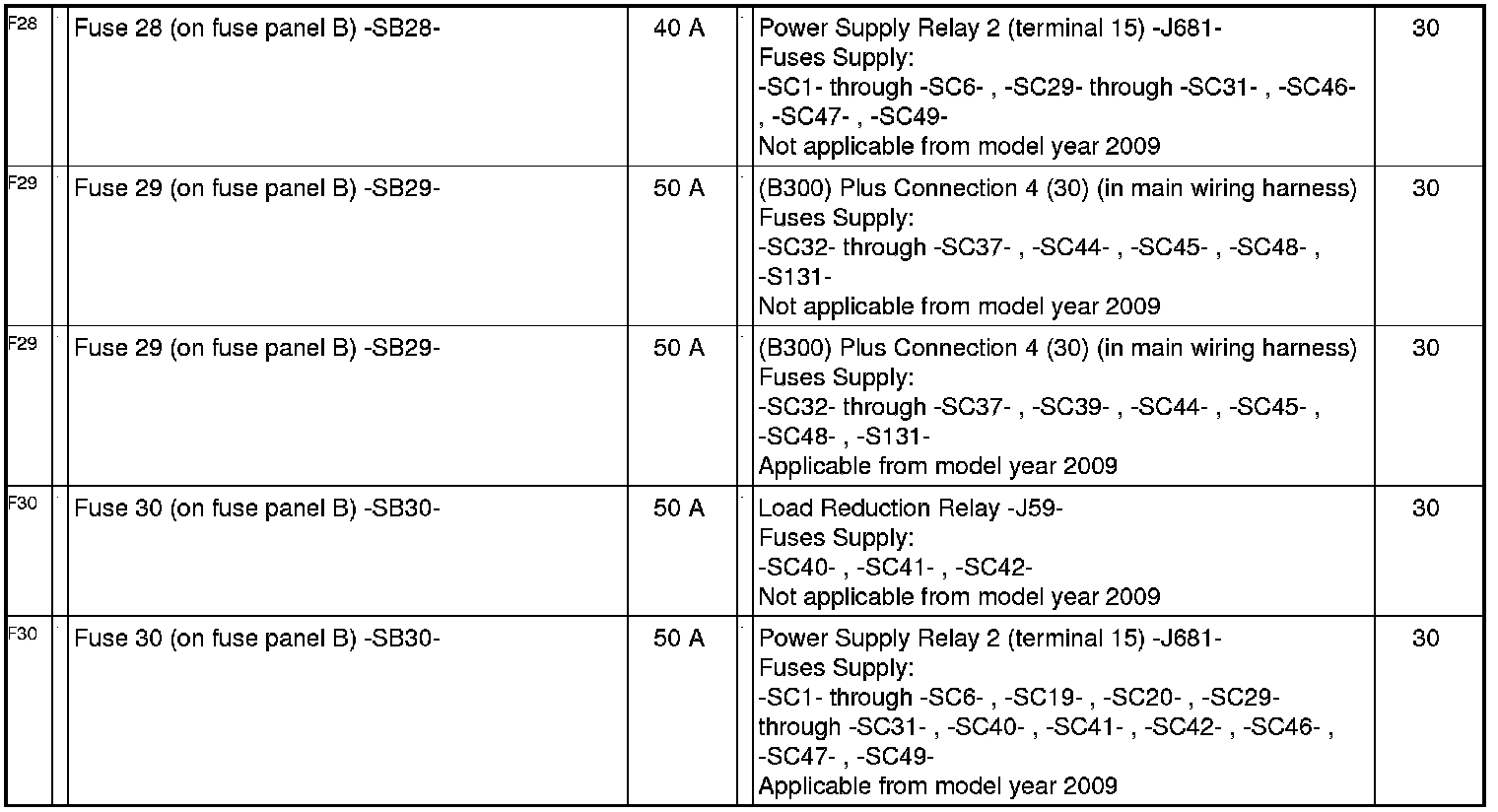

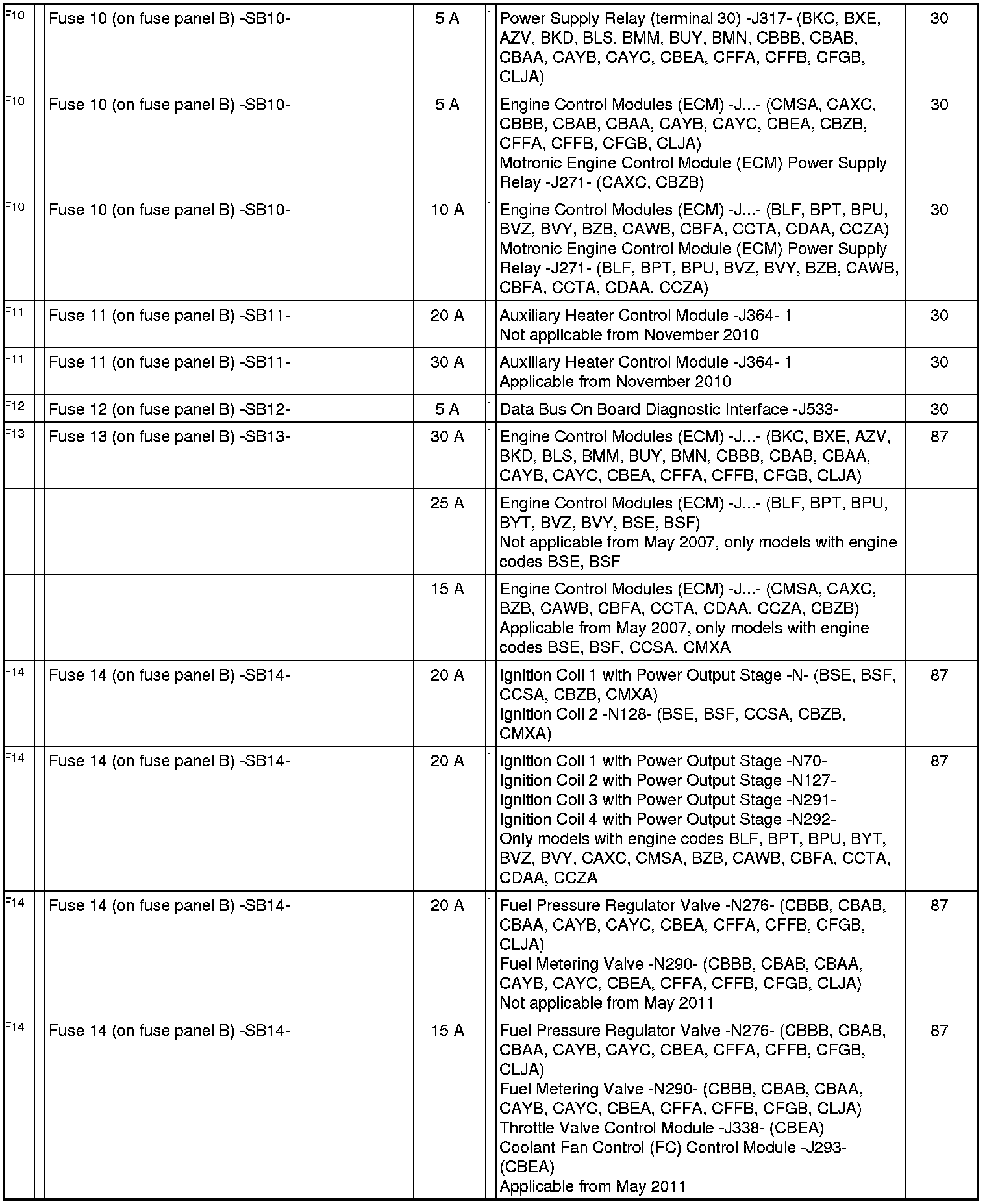

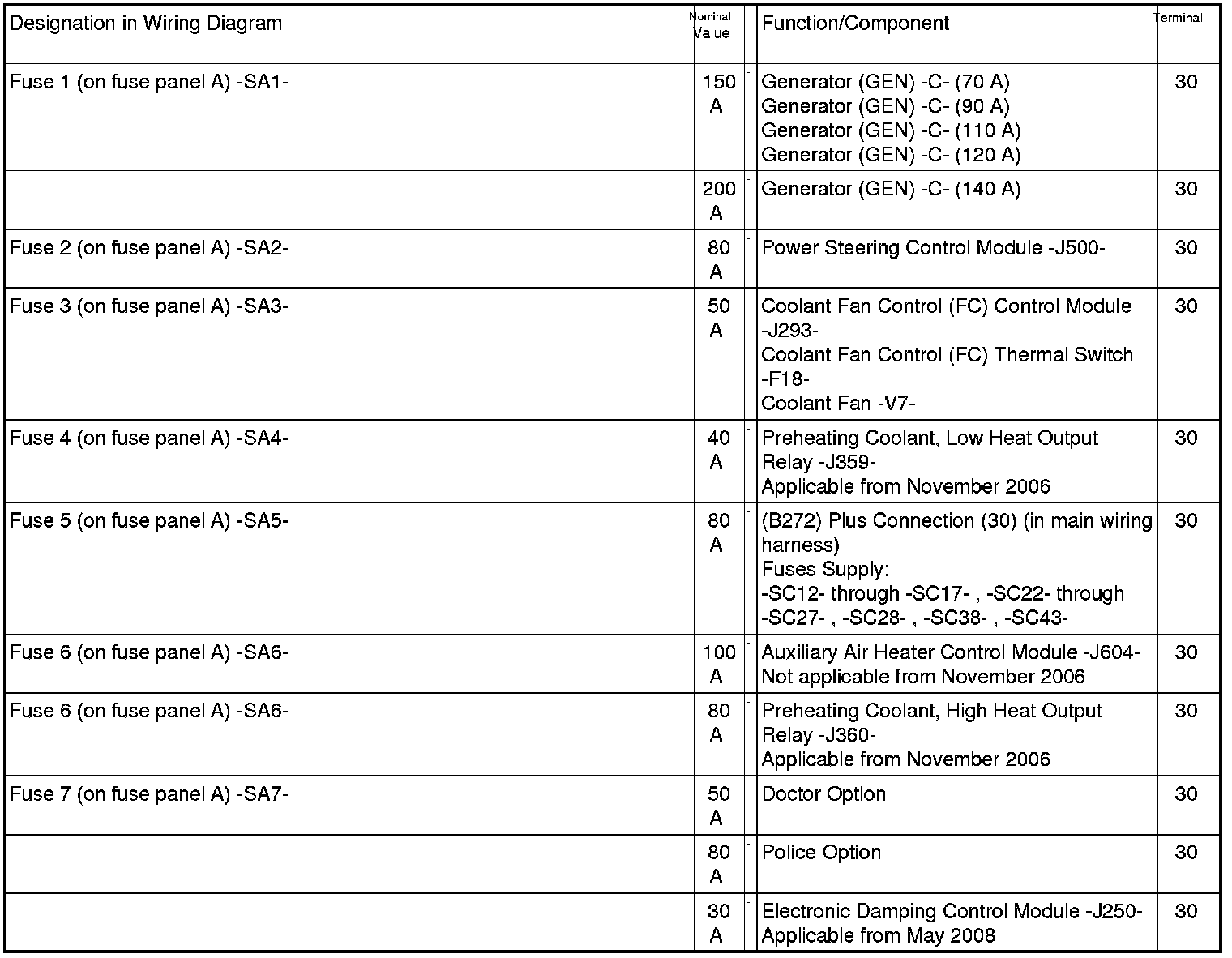

Fuse Arrangements Electronics Box Low, from model year 2007































1 Not for models with US equipment
