Fuse Arrangements Electronics Box Low, from MY 06

Fuses

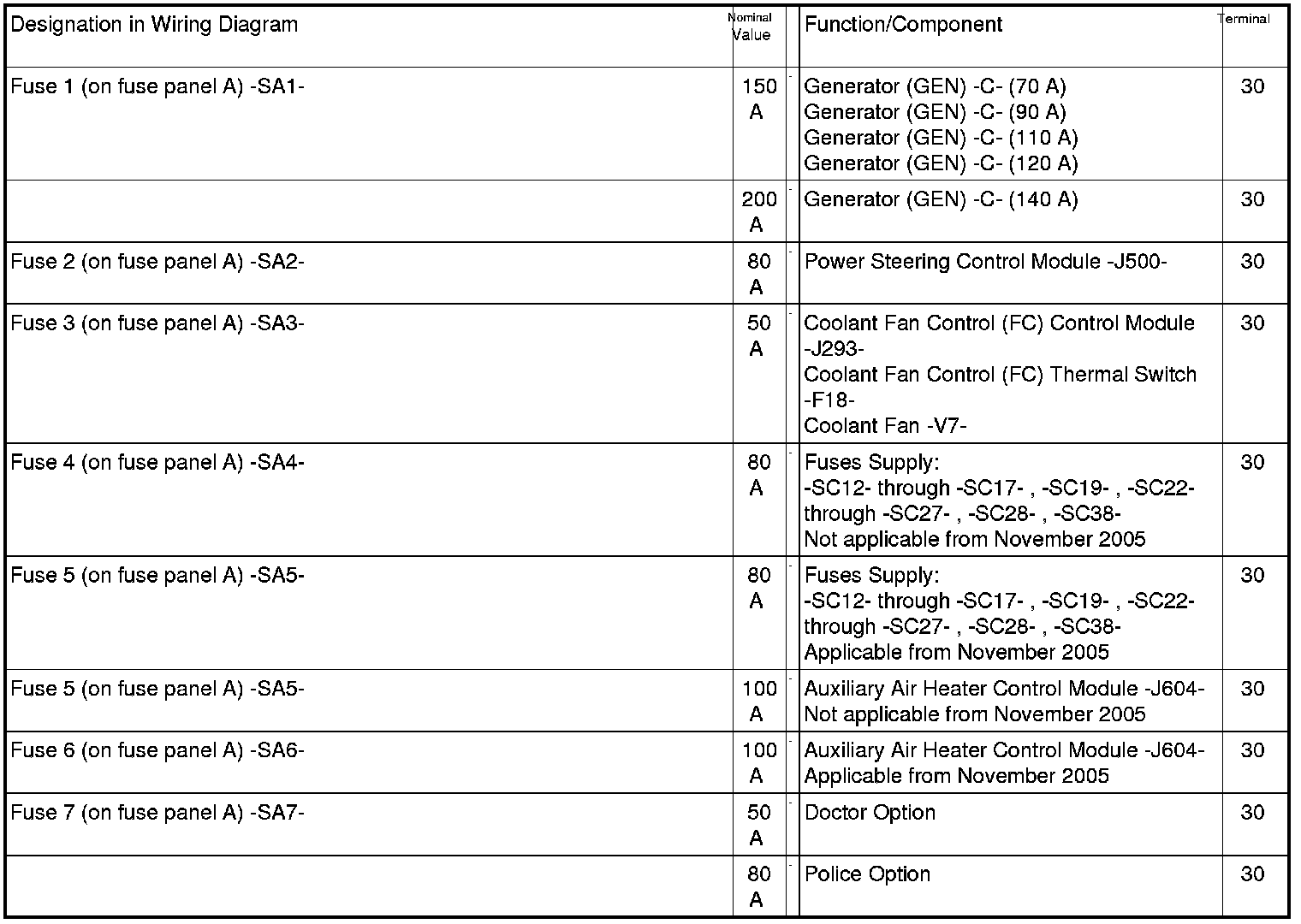

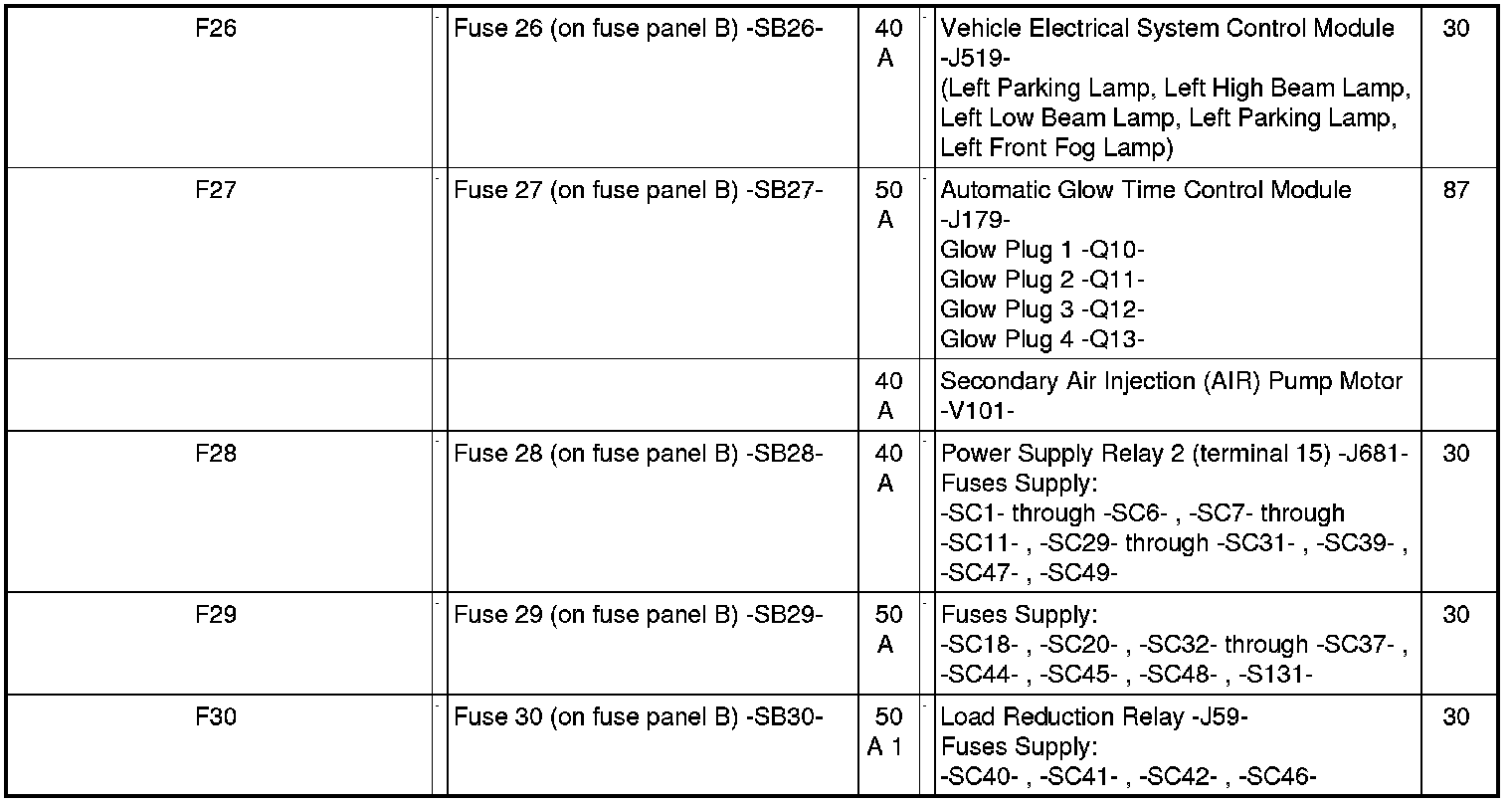

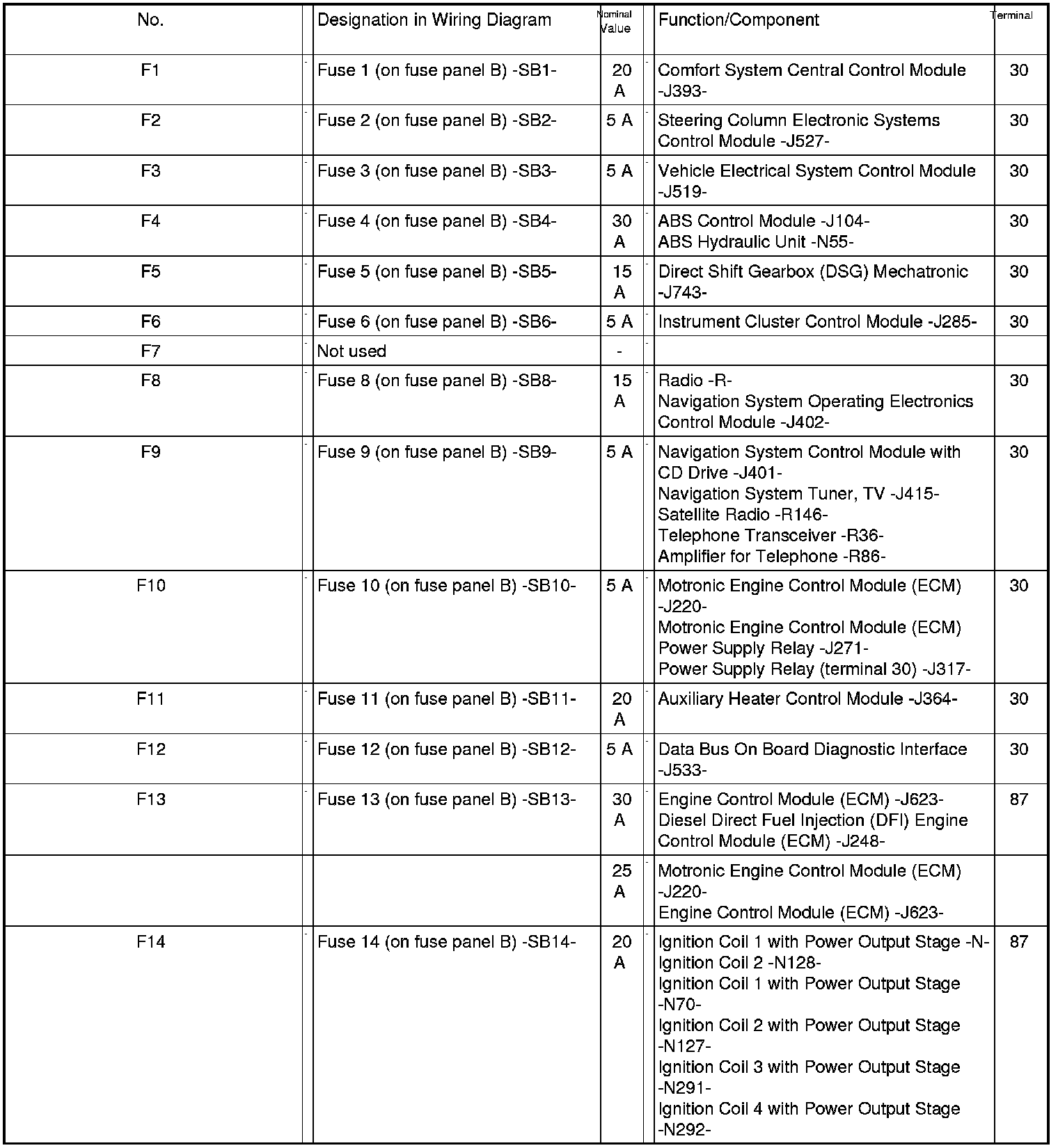

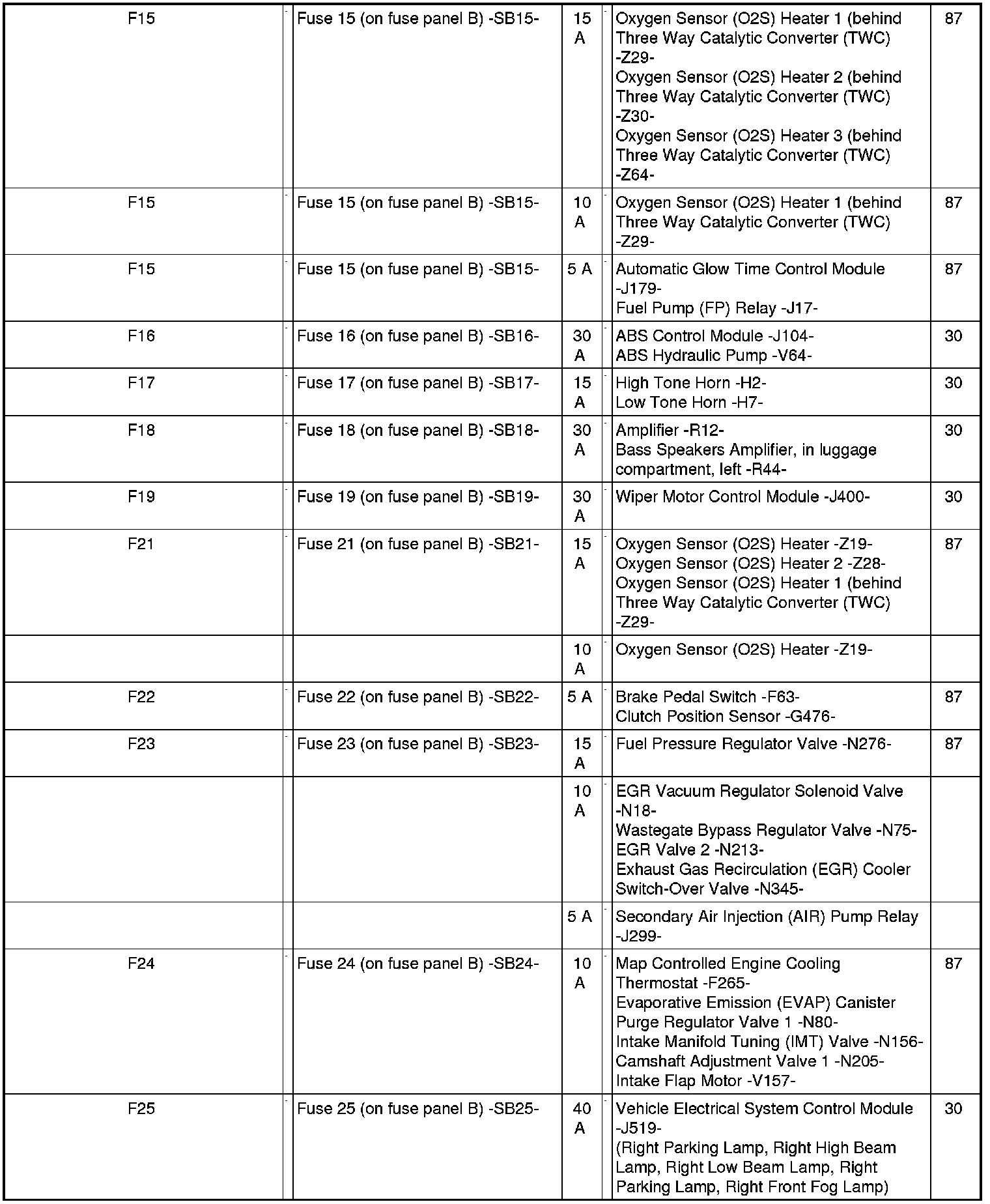

Fuse Arrangements Electronics Box Low, from model year 2006




















Note:
• 1 Fuse was increased from 40 A to 50 A, applicable from
November 2005
