Fuse Arrangements Electronics Box High, from MY 04













Fuses

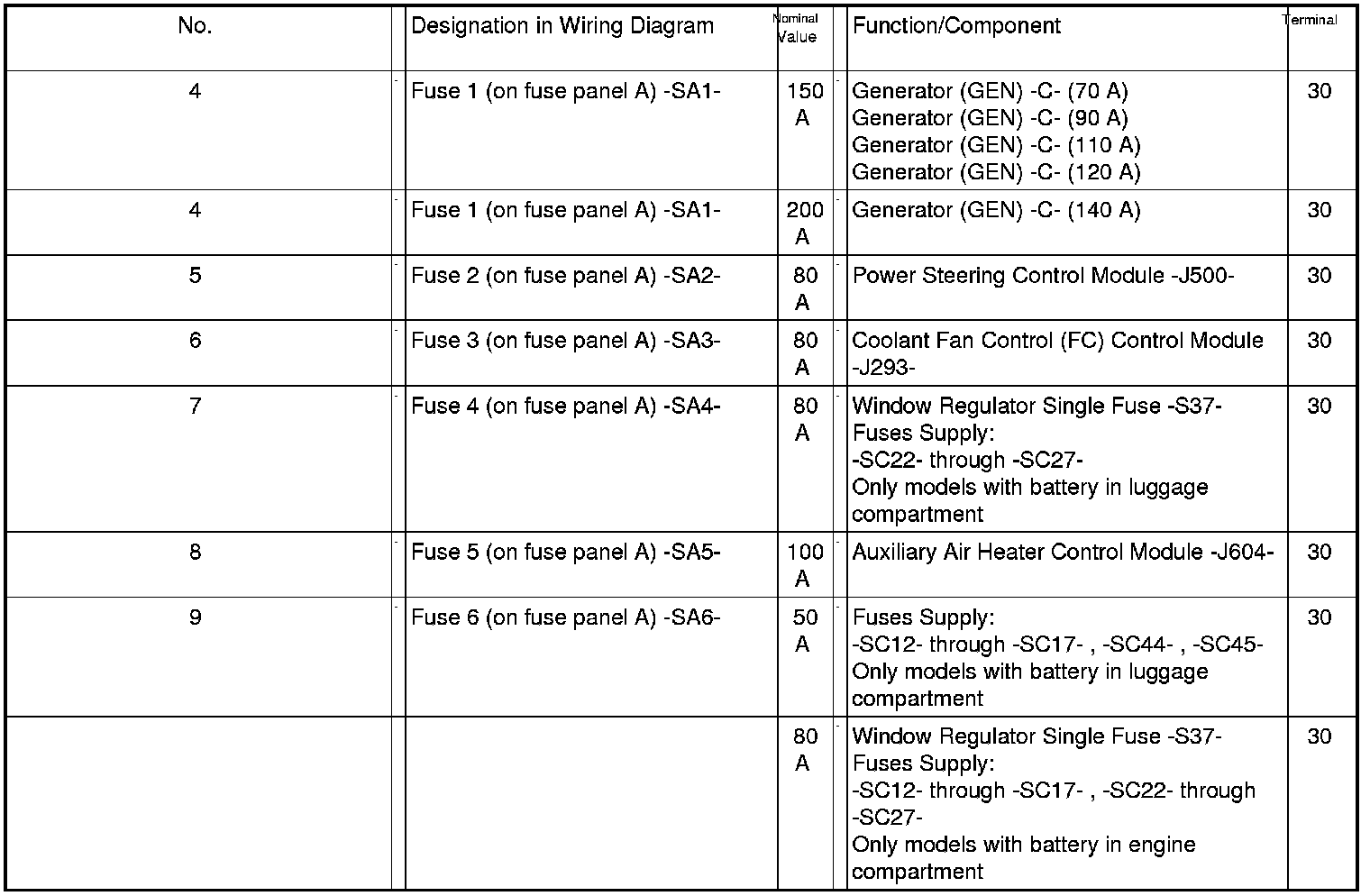

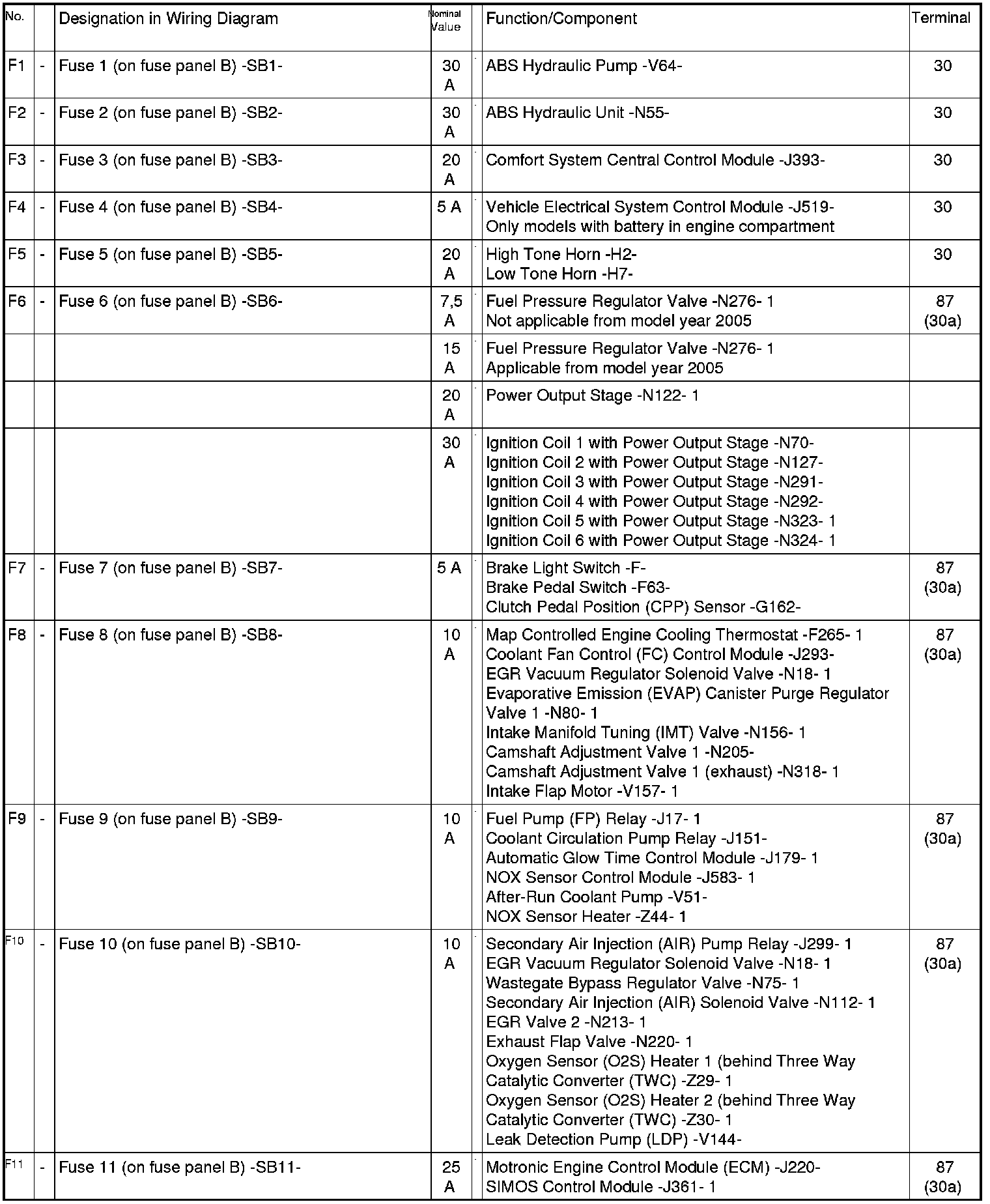

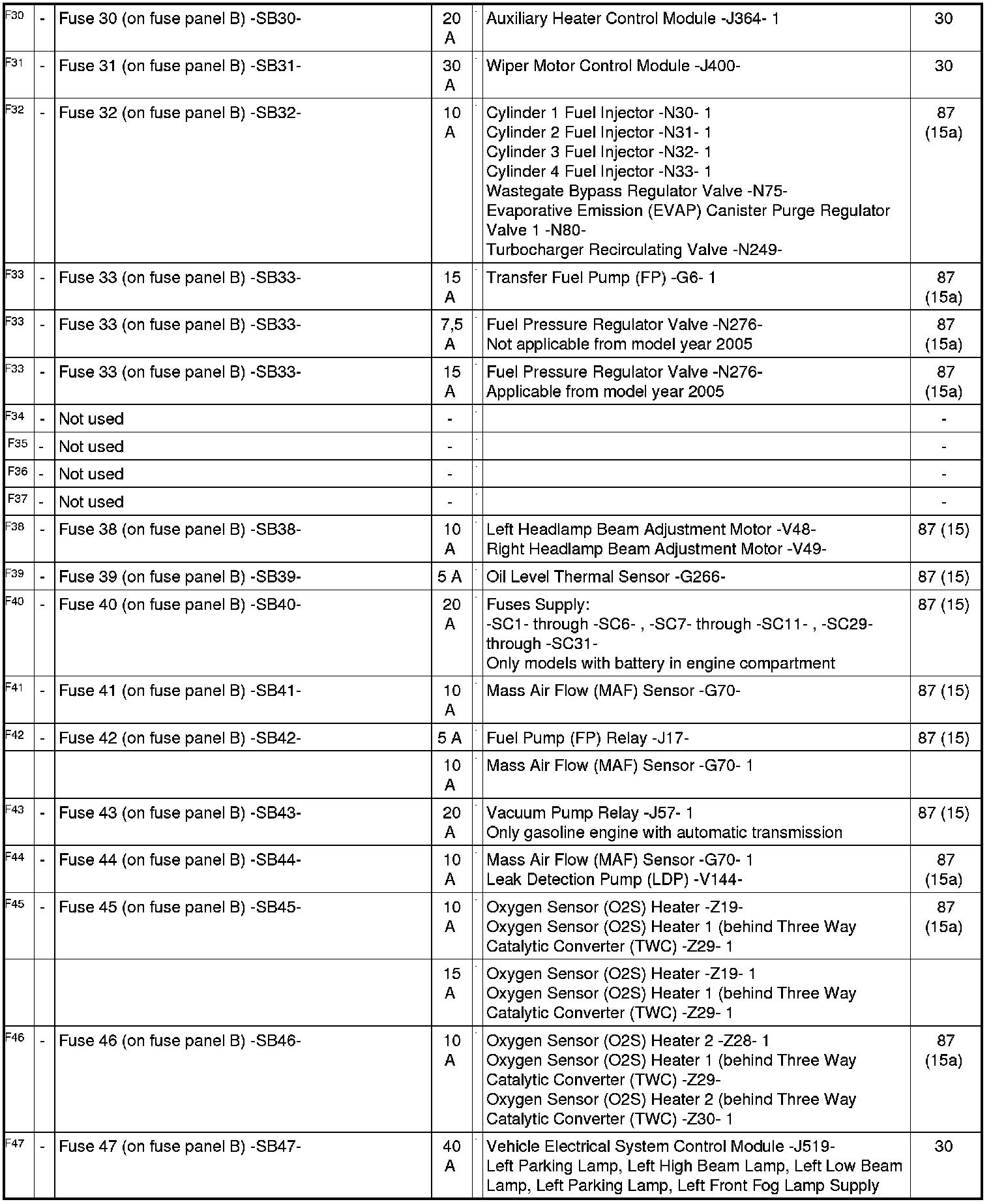

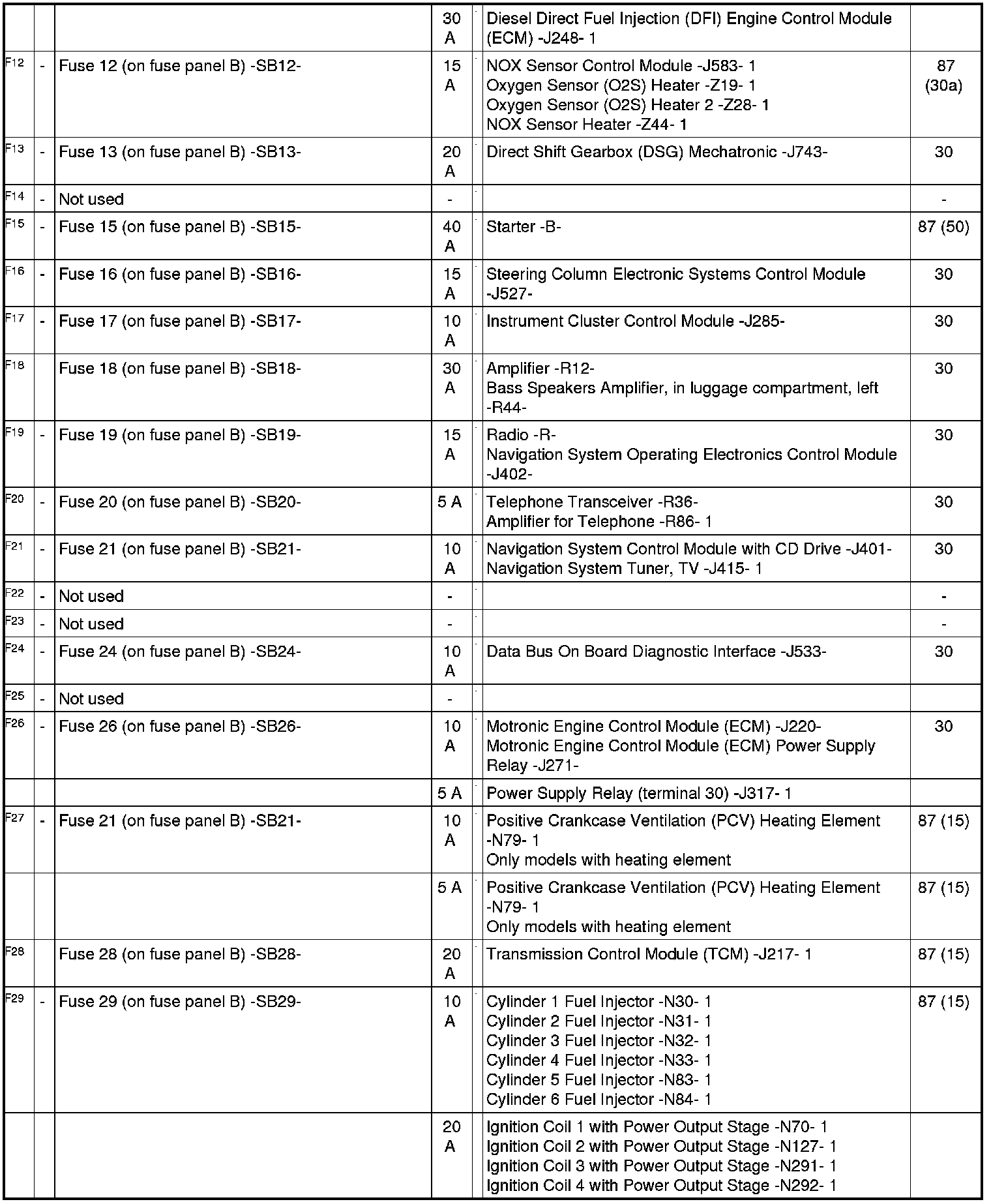

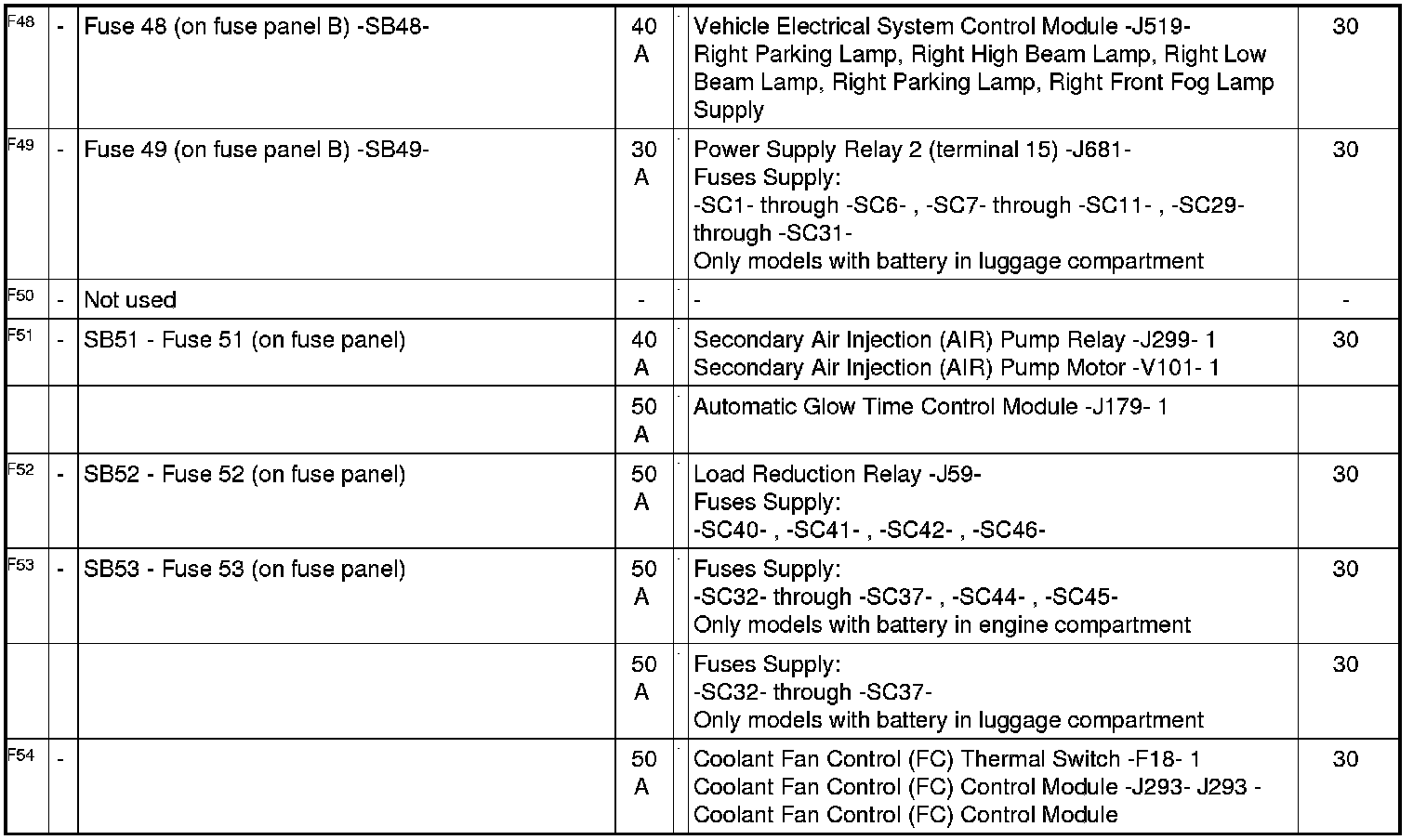

Fuse Arrangements Electronics Box High, from model year 2004























1 Not for models with US equipment
