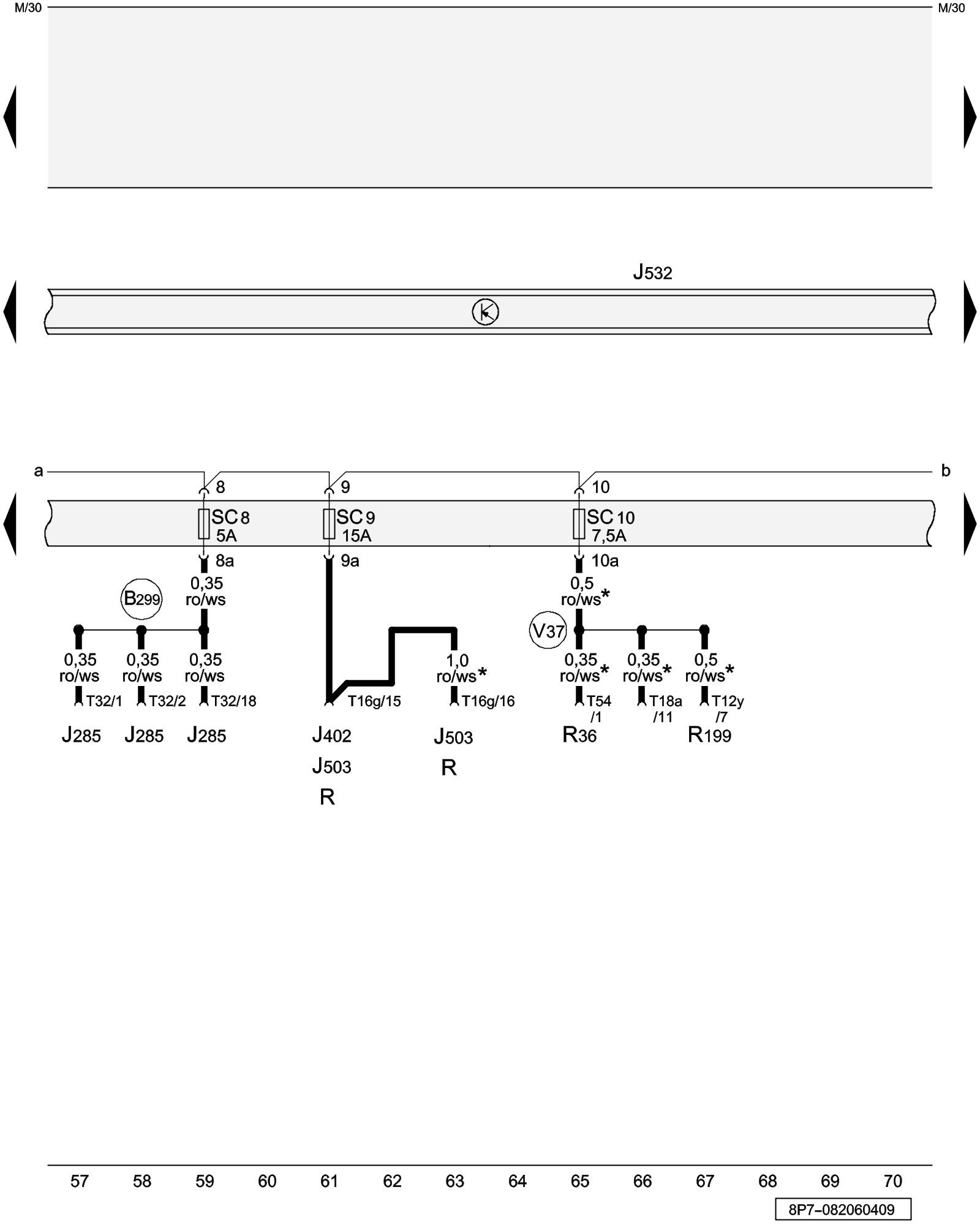

Diagram 82/6 (Tracks 57-70)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Voltage Stabilizer, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module Control Modules in Interior Of Vehicle

J402 - Navigation System Operating Electronics Control Module Control Modules in Interior Of Vehicle

J503 - Radio/Navigation Display Control Module Control Modules in Interior Of Vehicle

J532 - Voltage Stabilizer Control Modules in Interior Of Vehicle

R - Radio Control Modules in Interior Of Vehicle

R36 - Telephone Transceiver

R199 - External Audio Source Connector

SC8 - Fuse 8 (on fuse panel C) Overview Of Fuses

SC9 - Fuse 9 (on fuse panel C) Overview Of Fuses

SC10 - Fuse 10 (on fuse panel C) Overview Of Fuses

T12y - 12-Pin Connector, black (Connector A)

T16g - 16-Pin Connector, black (Connector D)

T18a - 18-Pin Connector, black, near glove compartment (Connector A)

T32 - 32-Pin Connector, blue (Connector A)

T54 - 54-Pin Connector, black (Connector A)

(B299) - Plus Connection 3 (30) (in main wiring harness)

(V37) - Plus Connection (30) (in communications wiring harness)

* - => Applicable Wiring Diagram Radio or Cellular Telephone Preparation or Radio-Navigation System
