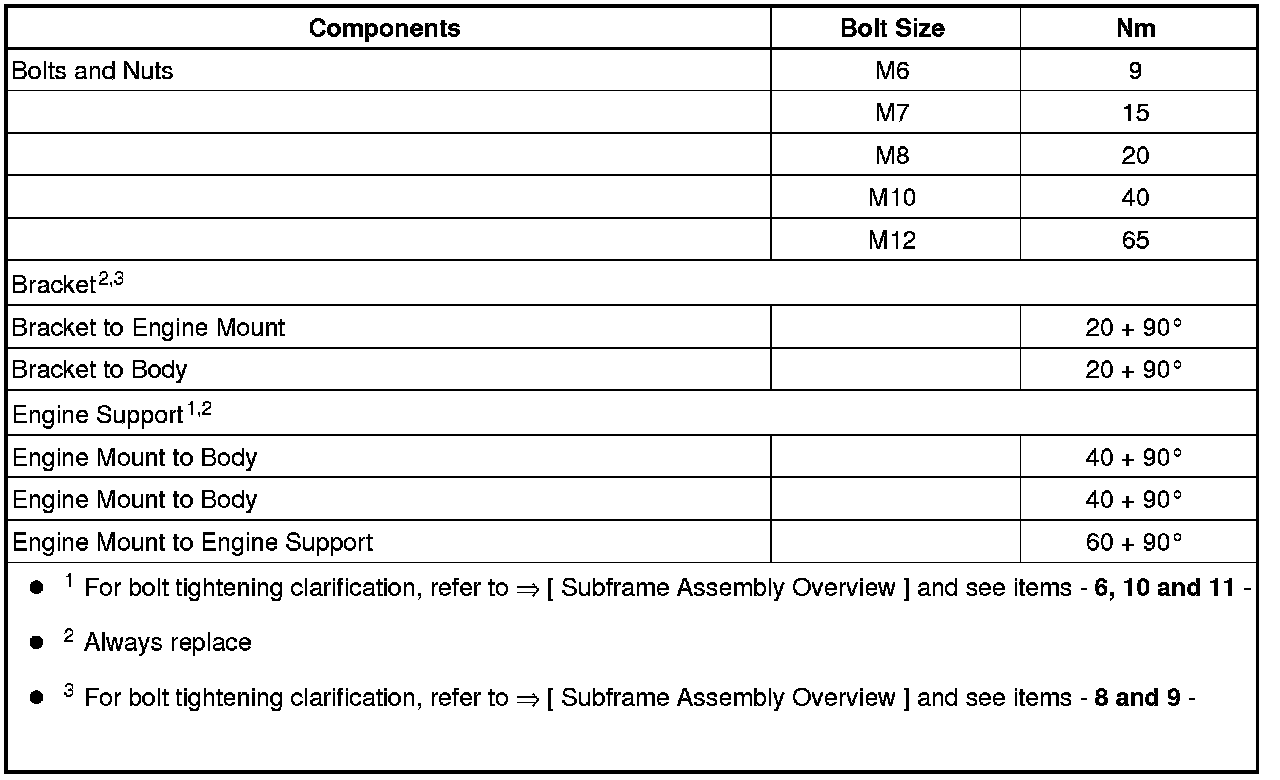

Fastener Tightening Specifications

Fastener Tightening Specifications

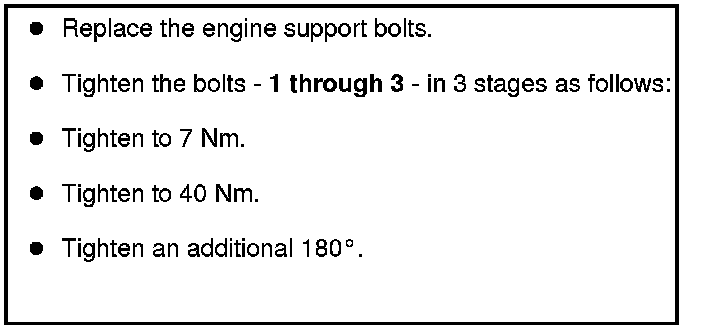

Engine Support - Tightening Specification and Sequence

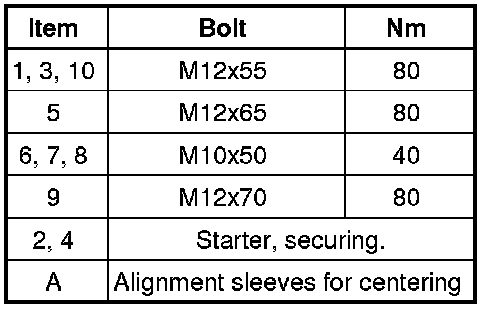

Mounting, S-Tronic transmission to engine










Installation is performed in reverse order of removal, noting the following:

• The engine/transmission subassembly is attached to the engine bracket (T10012).
