Oil Pan, Engine

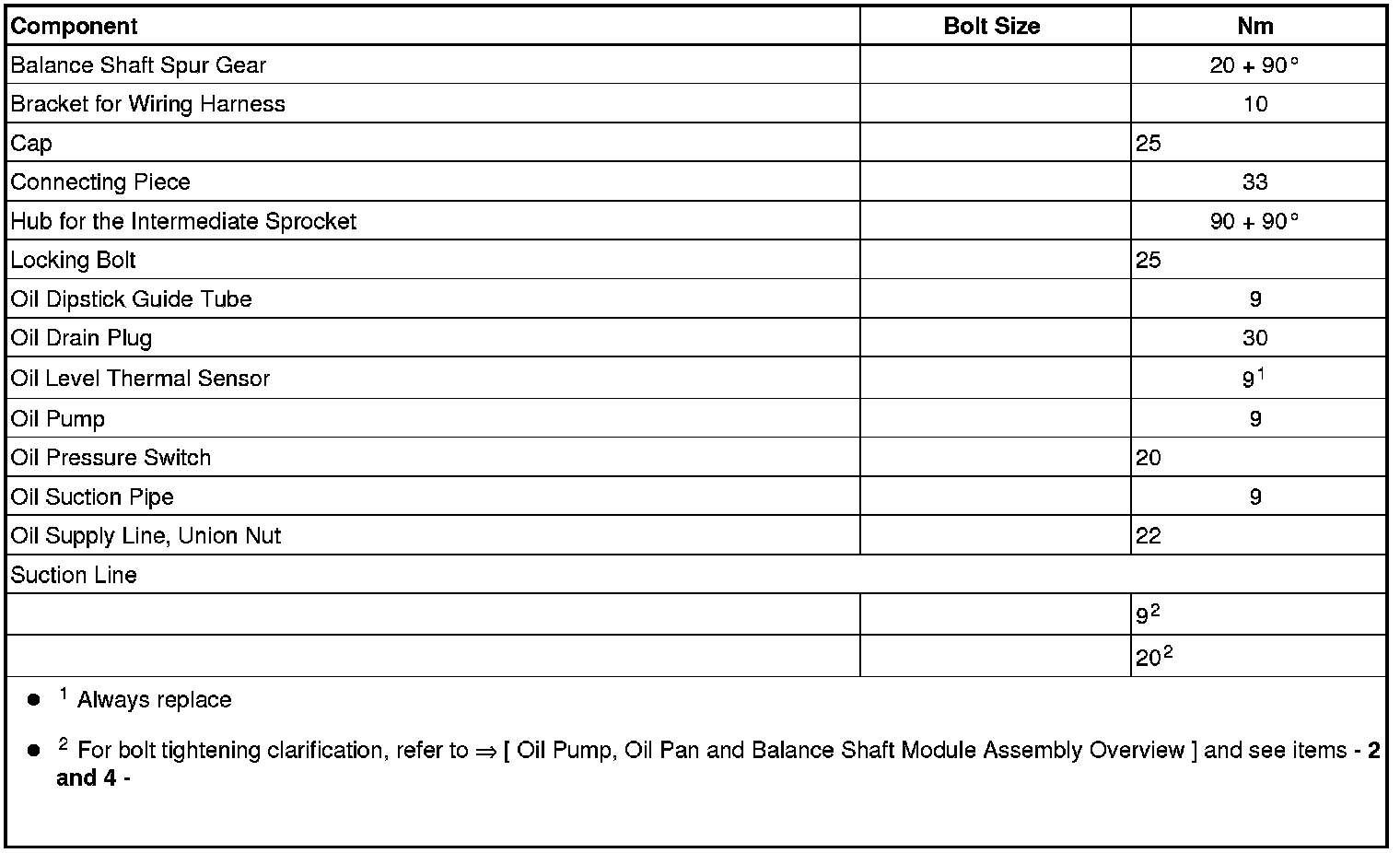

Fastener Tightening Specifications






Oil Pan - Tightening Specifications and Sequence





- Tighten the bolts in 3 stages in a diagonal sequence as follows:






Balance Shaft Assembly - Tightening Specification and Sequence
