Controls, Housing

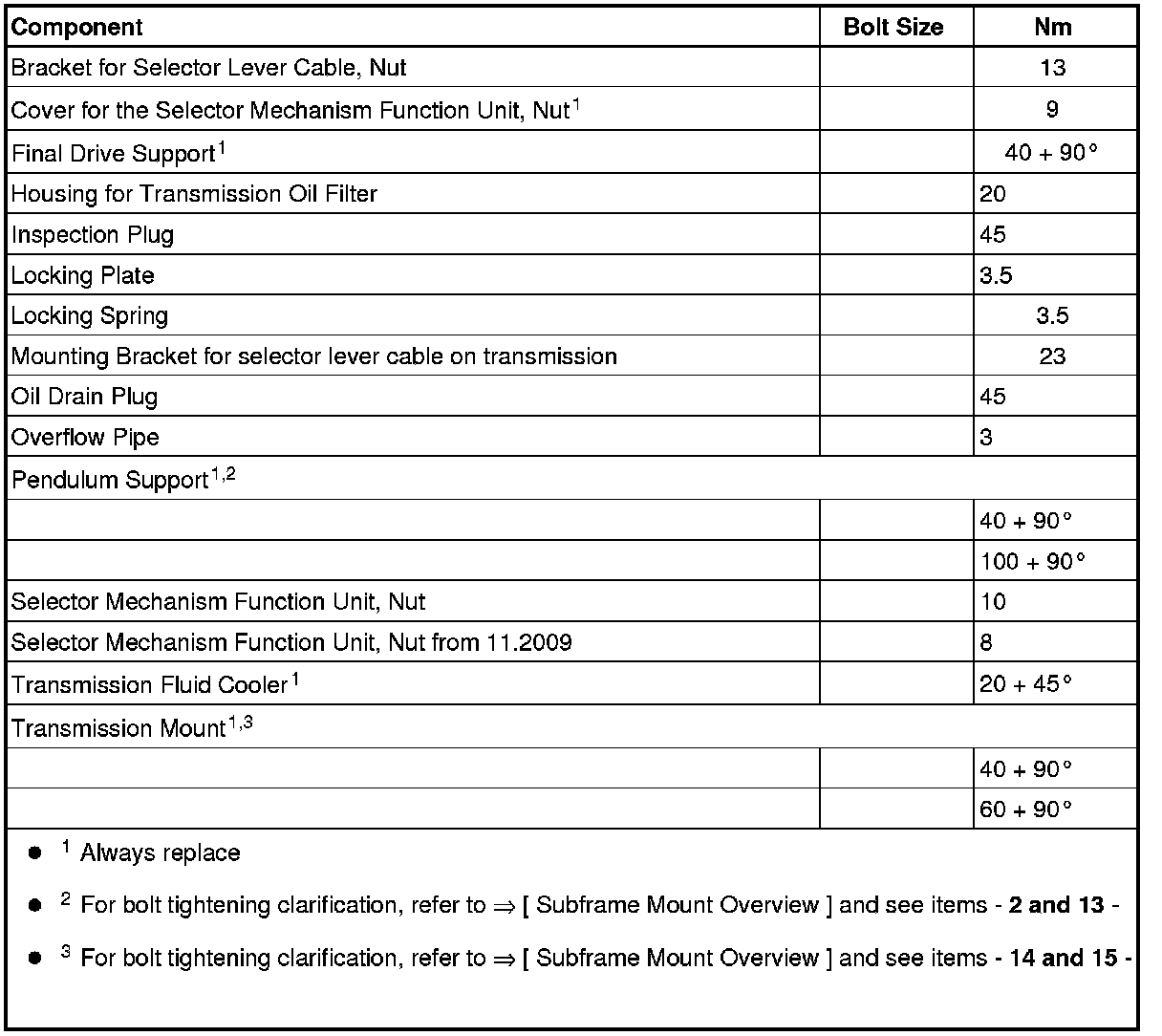

Fastener Tightening Specifications

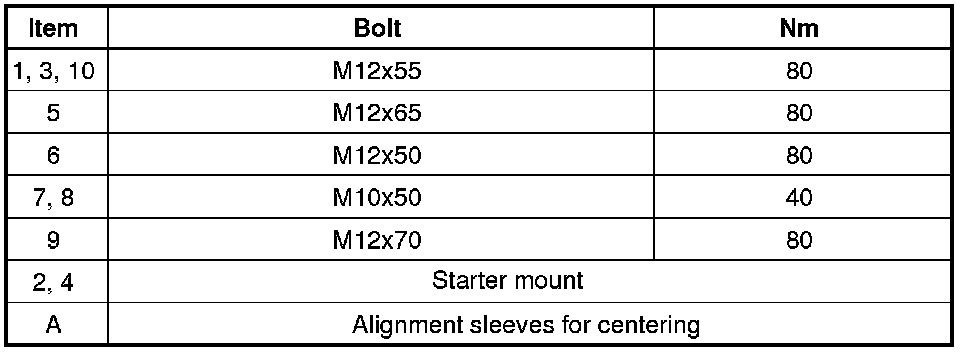

Attaching the Transmission to a 2.0L TFSI Engine

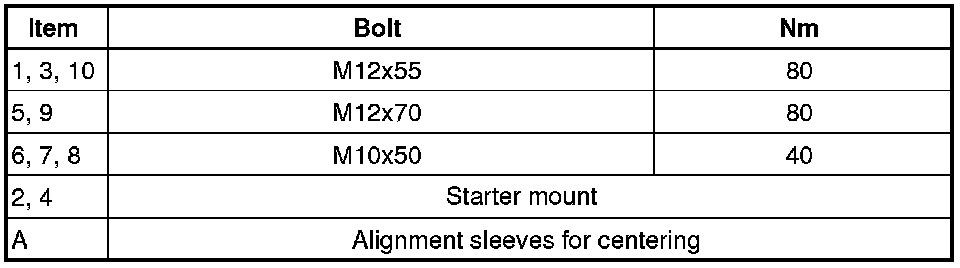

Attaching the Transmission to a 2.0L TDI CR Engine
