Rear Door Lamps and Switches

Rear Window Regulator Switches

Removing






- Switch off ignition and remove ignition key.

- Remove rear door trim.

- Detach insulating mat from door trim.

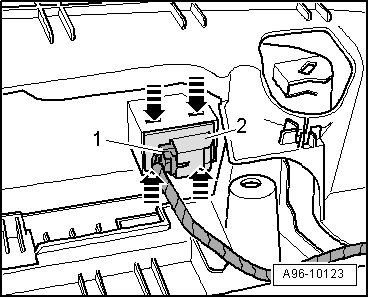

- Disconnect electrical connector - 1 -.

- Carefully release catches - arrows - using a small screwdriver.

- Pull window regulator switch - 2 - downward out of the switch mount.

Installing

Install in reverse order of removal, noting the following:

- Press window regulator switch into switch mount until catches engage.

- Install rear door trim.
