Airbag Crash Sensors

Component Locations: Airbag Systems

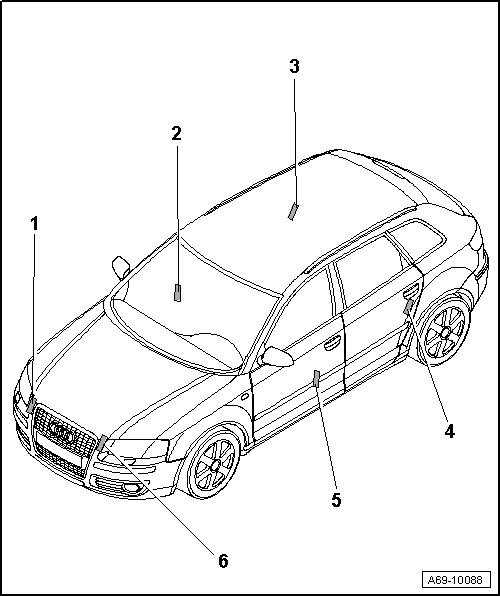

Airbag Crash Sensors







1 - Front Passenger Front Airbag Crash Sensor -G284-
• Located near the headlights

2 - Front Passenger Side Airbag Crash Sensor -G180-
• Located in the front door

3 - Rear Side Airbag Crash Sensor (on front Passenger side) -G257-
• Located on the rear wheel housing liner facing forward

4 - Rear Side Airbag Crash Sensor (on Driver side) -G256-
• Located on the rear wheel housing liner facing forward

5 - Driver Side Airbag Crash Sensor -G179-
• Located in the front door

6 - Driver Front Airbag Crash Sensor -G283-
• Located near the headlights
