Air Temperature Sensor ( Ambient / Intake ): Diagrams






Engine Management System - Connector Views

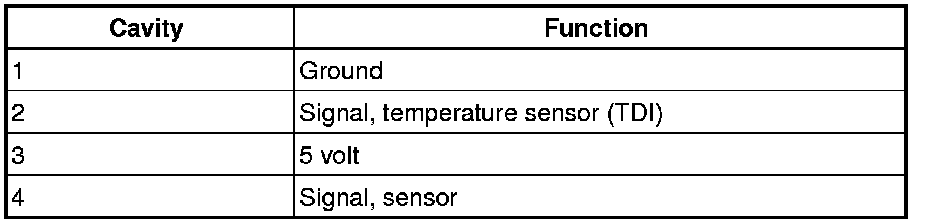

Charge air pressure sensor -G31- / Intake air temperature sensor -G42-



2.0L - CCTA, CBFA, BPY







2.0L TDI - CBEA
