Hazard Warning Switch: Service and Repair

Emergency Flasher Switch, from 06.2008

Removing






- Switch off ignition and remove ignition key.

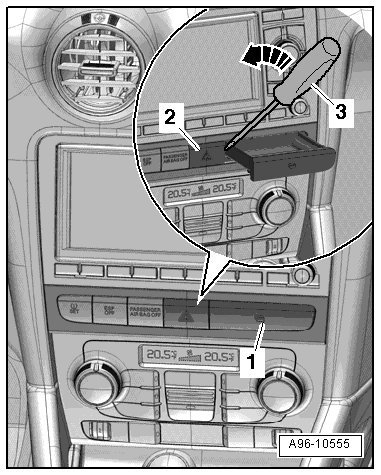

- Open the storage compartment - 1 -.

- Carefully pry the emergency warning switch (E3) - item 2 - with a small screwdriver - 3 - out of the frame - arrow -.

- Disconnect the electrical connector.

Installing

Install in reverse order of removal, observing the following:

- Press the switch into the frame.
