Brake Light Switch: Diagrams

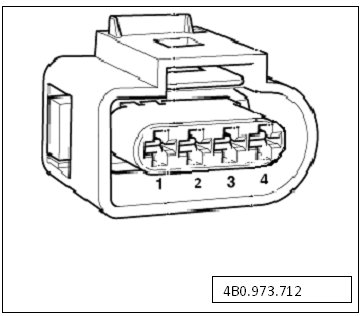

Engine Management System - Connector Views

Brake lamp switch -F-

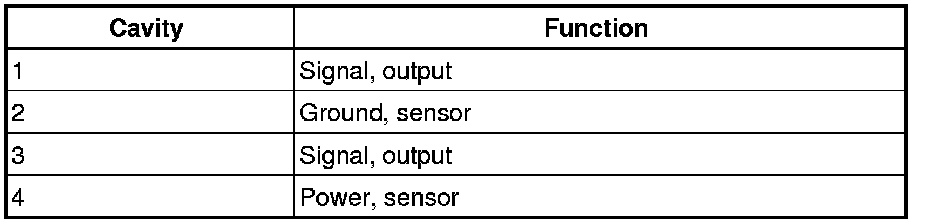

All engines except 2.0L - BPY - 2005 and earlier

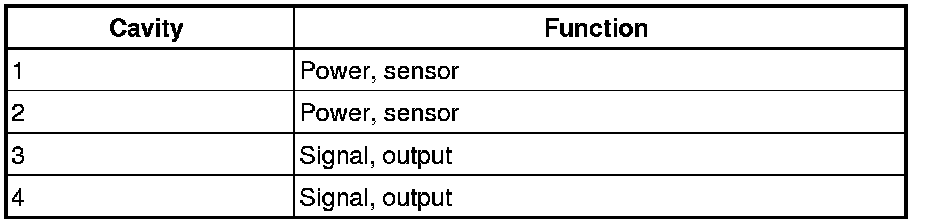

2.0L- BPY - 2005 and earlier
