Speed Sensor at Rear Axle With Front-Wheel Drive

Speed Sensor at Rear Axle with Front-Wheel Drive

Removing

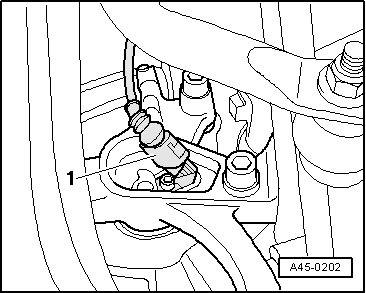

- Release connector - 1 - at speed sensor and disconnect.

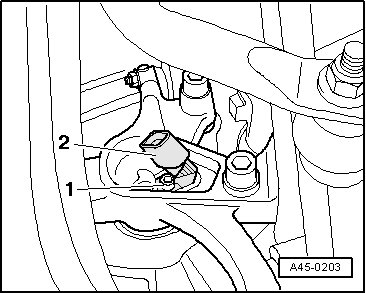

- Remove bolt - 1 -.






- Pull speed sensor out from stub axle.

Installing

Installation is in reverse order of removal, with special attention to the following:

- Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with polycarbamide grease (G 000 650)

Tightening Specifications
