Speed Sensor at Front Axle

Speed Sensor at Front Axle

Removing

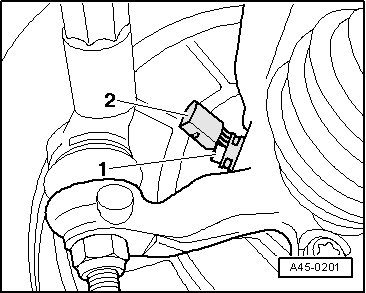

- Release connector - 1 - at speed sensor and disconnect.

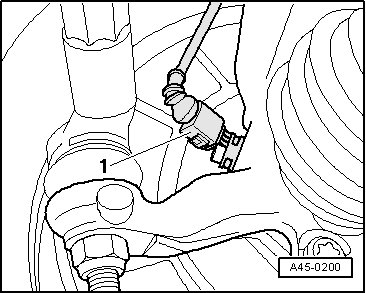

- Remove bolt - 1 -.






- Pull speed sensor out from wheel bearing housing.

Installing

Installation is the reverse of removal, with special attention to the following:

- Before inserting speed sensor, clean hole inner surface and coat speed sensor all-round with Polycarbamide grease (G 000 650).

- Turn the steering completely left and right, making sure that the speed sensor wiring has sufficient clearance.

Tightening Specifications
