Power Mirror Switch: Service and Repair

Mirror Adjustment Switch

Removing






- Switch off ignition and remove ignition key.

- Remove front door trim.

- Detach insulating mat from door trim.

- Remove bolts - arrows - and remove the armrest.

- Release the retaining clips - arrow - and remove cover - 1 -.






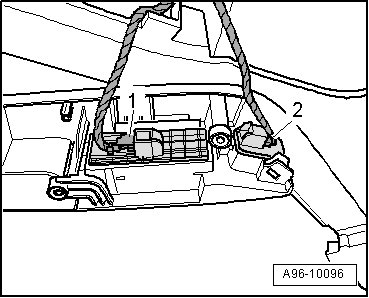

- Disconnect electrical connectors - 1 - and - 2 -.

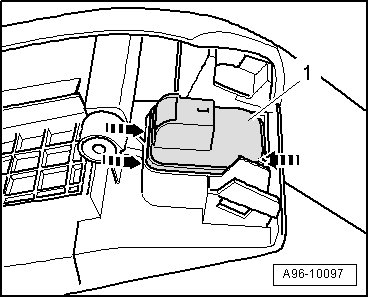

- Carefully release catches - arrows - using a small screwdriver.






- Pull mirror adjustment switch - 1 - downward out of switch mount.

Installing

Install in reverse order of removal, noting the following:

• When installing, ensure symbol panel is inserted in front of mirror adjustment switch.

- Press mirror adjustment switch into switch mount until catches engage.

- Install front door trim.
