Tiptronic Switch

Tiptronic Switch

=> [ Tiptronic Switch, with Two Blocks of Buttons ]

=> [ Tiptronic Switch, with Roller Buttons ]

Two versions of the multifunction steering wheel are used.

Multifunction Steering Wheel with Two Blocks of Buttons





Multifunction Steering Wheel with Roller Buttons

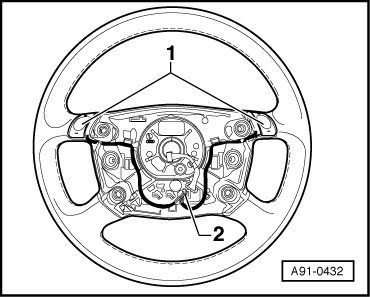

Tiptronic Switch, with Two Blocks of Buttons

Removing

- Disconnect battery ground wire.

- Observe airbag system safety precautions.

- Remove driver's airbag.

- Disconnect electrical connection - 2 -.





- Rotate buttons - 1 - inward (to steering wheel center point) and remove.

Installing

- Install in reverse order of removal.

- Make sure that all connections have engaged and lines lie in corresponding guides.

Tiptronic Switch, with Roller Buttons

Removing

- Remove driver's airbag.

- Disconnect trim ring from steering wheel.

- Slide multifunction button - 2 - out of steering wheel in - direction of arrow -.





- Turn the button around.

- Disconnect the connector - 2 - from the multifunction button - 1 -.





- Remove screw - arrow - and remove Tiptronic switch downward.





Installing

- Install in reverse order of removal.

Removal and installation of the left switch is identical.
