Multifunction Buttons

Multifunction Buttons

=> [ Multifunction Buttons, with Two Blocks of Buttons ]

=> [ Multifunction Buttons, with Roller Buttons ]

Two versions of the multifunction steering wheel are used.

Multifunction Steering Wheel with Two Blocks of Buttons





Multi-Function Steering Wheel with Roller Buttons





Multifunction Buttons, with Two Blocks of Buttons

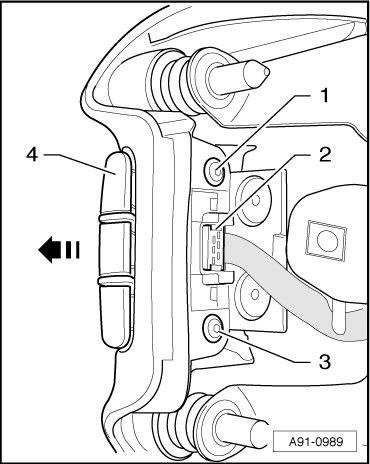

Removing

- Disconnect battery ground wire.

- Observe airbag system safety precaution.

- Remove driver's airbag.

- Disconnect electrical connection - 2 -.





- Remove bolts - 1 - and - 3 - (1 Nm).

- Remove switch unit - 4 - in - direction of arrow - from airbag unit.

Installing

- Install in reverse order of removal.

- Make sure that all connections have engaged and lines lie in proper guides.

Multifunction Buttons, with Roller Buttons

Removing

- Disconnect battery ground wire.

- Observe airbag system safety precautions.

- Remove driver's airbag.

- Disconnect harness connector - 1 - at button - 2 -.





- Slide button - 2 - out of steering wheel in - direction of arrow -.

- Turn the button around.

- Disconnect the connector - 2 - to tiptronic switch from multifunction button - 1 - and remove button.





Installing

- Install in reverse order of removal.

• Removal and installation of left multifunction button is identical.
