Front Part Assist Overview, From 06.2008

Front Part Assist Overview, from 06.2008

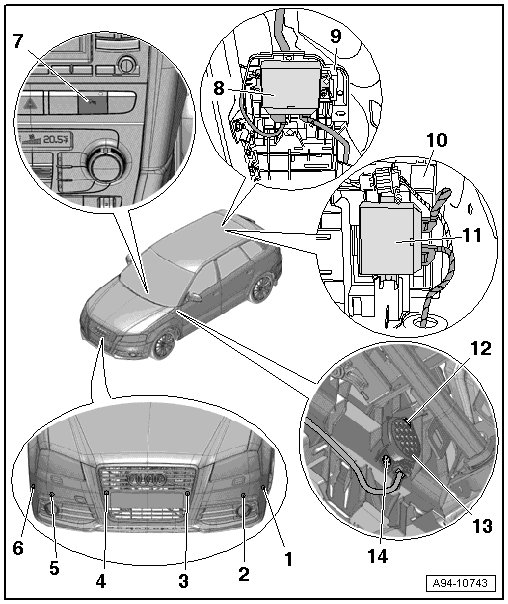

1 Left Front Parallel Parking Assistance Sensor (vehicle - left side) (G568)

• Only on vehicles with parallel parking assistance

• Removing and installing, refer to => [ Left and Right Front Parallel Parking Assistance Sensors ] Left and Right Front Parallel Parking Assistance Sensors

2 Left Front Parking Aid Sensor (G255)

• In front bumper

• Removing and installing, refer to => [ Front Parking Aid Sensors ] Front Parking Aid Sensors

3 Left Front Center Parking Aid Sensor (G254)

• In the radiator grille

• Removing and installing, refer to => [ Front Parking Aid Sensors ] Front Parking Aid Sensors

4 Right Front Center Parking Aid Sensor (G253)

• In the radiator grille

• Removing and installing, refer to => [ Front Parking Aid Sensors ] Front Parking Aid Sensors

5 Right Front Parking Aid Sensor (G252)

• In front bumper

• Removing and installing, refer to => [ Front Parking Aid Sensors ] Front Parking Aid Sensors

6 Right Front Parallel Parking Assistance Sensor (G569)

• Only on vehicles with parallel parking assistance

• Removing and installing, refer to => [ Left and Right Front Parallel Parking Assistance Sensors ] Left and Right Front Parallel Parking Assistance Sensors

7 Parking Aid Button (E266)

• Only with 8-channel parking aid

• Removing and installing, refer to => [ Park Assist Button, from 06.2008 ] Park Assist Button, From 06.2008

8 Parking Aid Control Module (J446) - three-door

9 Bracket

• For parking aid control module - three-door

10 Bracket

• For parking aid control module - Sportback

11 Parking Aid Control Module - Sportback

• Removing and installing, refer to => [ Parking Assist Control Module ] Parking Assist Control Module

12 Expanding Clip

13 Front Parking Aid Warning Buzzer (H22)

• On the central tube for the instrument panel behind the driver side storage compartment

• Removing and installing, refer to => [ Front Parking Aid Warning Buzzer, 8-Channel Parking Aid ] Front Parking Aid Warning Buzzer, 8-Channel Parking Aid

14 Expanding Clip
