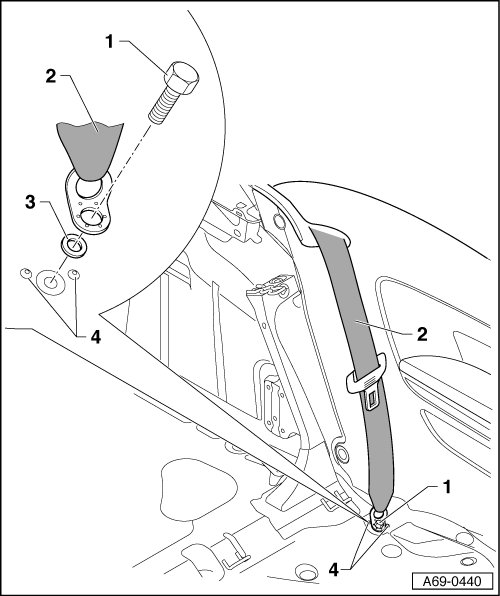

Outer Rear Floor Assembly Anchorage Point

Outer Rear Floor Assembly Anchorage Point






1 Bolt

55 Nm

• In seat belt delivery package

• If rear out floor assembly anchorage point is being removed for accident repairs, screw - 1 - must be replaced.

Removing

- Remove the rear bench seat. Refer to => [ Rear Bench Seat ] Rear Bench Seat.

- Remove the bolt - 1 -.

- Remove belt with anchor - 2 -.

Installation

To install, perform the steps used in removal in reverse order. Note the following:

• Fitting secured to floor with securing nubs - 4 -.

2 Belt with Anchor

3 Window

• In seat belt delivery package

4 Securing Nubs
