Replacement Airbag Wiring Harness, Installing on Backrest

Replacement Airbag Wiring Harness, Installing on Backrest


• Follow the safety precautions for pyrotechnic components.

• Before handling pyrotechnical components (for example, disconnecting the connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Remove backrest cover panel.

- Remove left and right seat side trim.

- Remove backrest. Ensure wiring is not damaged when doing this.

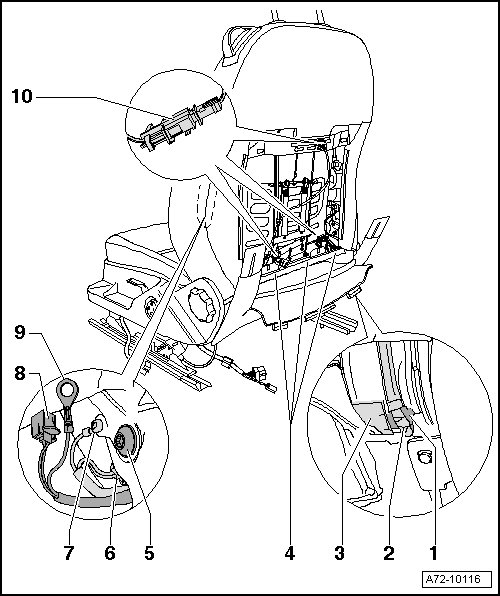

1 Cable Guide

• The wire must be routed on the side opposite the airbag module.

2 Replacement Airbag Wiring Harness

• It must be ensured that the wire cannot be rubbed or pinched when the seat is adjusted.

3 Felt

• Is contained in the repair kit.

• Should prevent damage to the replacement airbag wiring harness.

- Secure cable guide - 1 - with a felt strip on seat frame.

4 Cable Guide Openings

- Secure replacement airbag wiring harness in backrest cable guide openings.

5 Bolt

• For securing replacement airbag wiring harness ground connection - 9 -

• 10 Nm

6 Airbag Module Connector (Series Production Wiring Harness)

- Remove series production wiring harness connector.

- Connect replacement airbag wiring harness connector with airbag module.

7 Ground Connection on Airbag Module (Series Production Wiring Harness)

- Carefully disconnect wire.

8 Airbag Module Connector (Replacement Airbag Wiring Harness)

9 Ground Connection on Airbag Module (Replacement Airbag Wiring Harness)

- Tighten ground wire - 9 - on bolt - 5 - to 10 Nm.

10 Connectors

- Secure connectors to seat frame with cable ties.

• Further installation is performed in the reverse order of removal.
