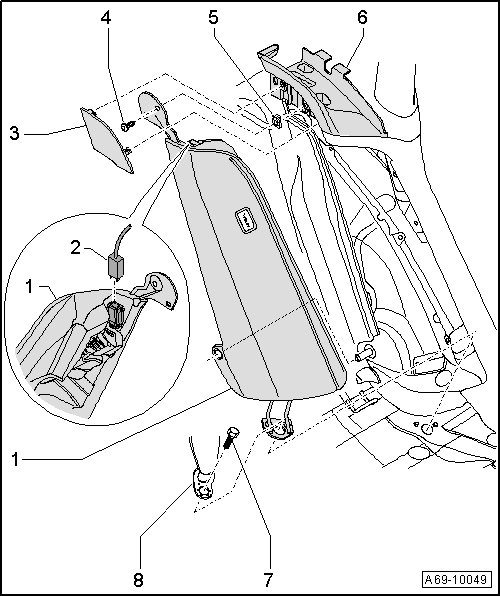

Rear Side Airbag Component Overview

Rear Side Airbag Component Overview






1 Rear Side Airbag


Follow the safety precautions for pyrotechnic components.

2 Connector

• For side airbag

3 Cover

4 Bolt

2 Nm

• Insert with locking compound; locking compound, refer to electronic parts catalog

5 Metal Nut

• replace

6 Belt Guide

• Removing and Installing, refer to => [ Belt Guide ] Belt Guide

7 Bolt

55 Nm

8 Seat Belt
