Direct Shift Gearbox 0B5







Control modules in front part of vehicle

Direct Shift Gearbox (DSG) Mechatronic -J743-

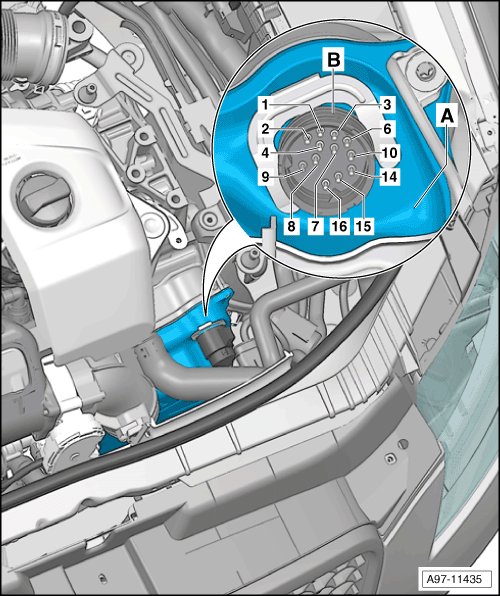

Component Location
in engine compartment, left





A - Direct Shift Gearbox (DSG) Mechatronic -J743-

B - 16-Pin Connector -T16j-
