Model Year 2007-Up
Control Modules in Interior of Vehicle
Airbag Control Module -J234-

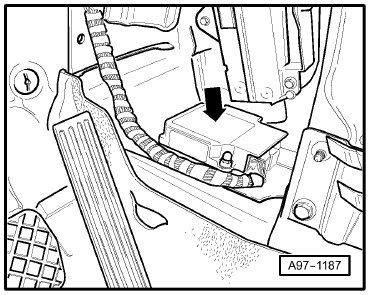

Component Location:
Below center console -Arrow-
Pin Arrangements:

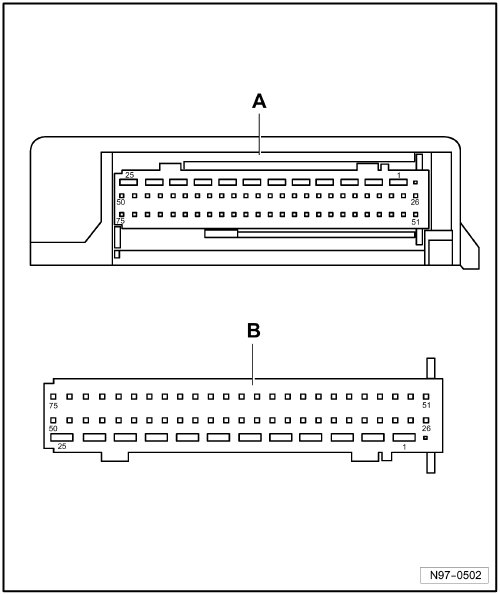

A - Airbag Control Module -J234-
Connector:
B - 75-Pin Connector -T75-
Pin Arrangements:

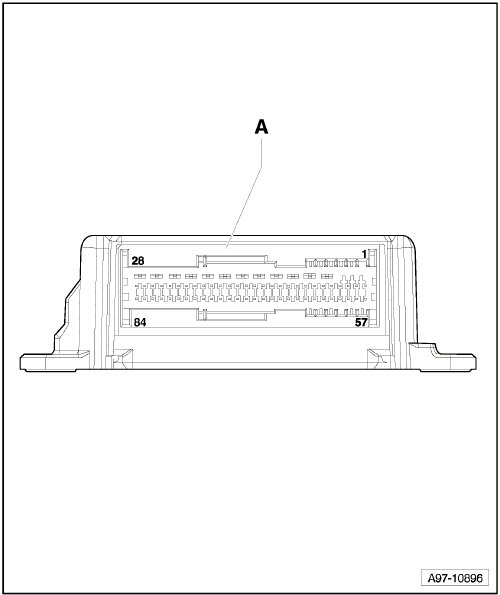

- Airbag Control Module -J234-
Connector:
A - 84-Pin Connector -T84-
A - 84-Pin Connector -T84a-
Pin Arrangements:

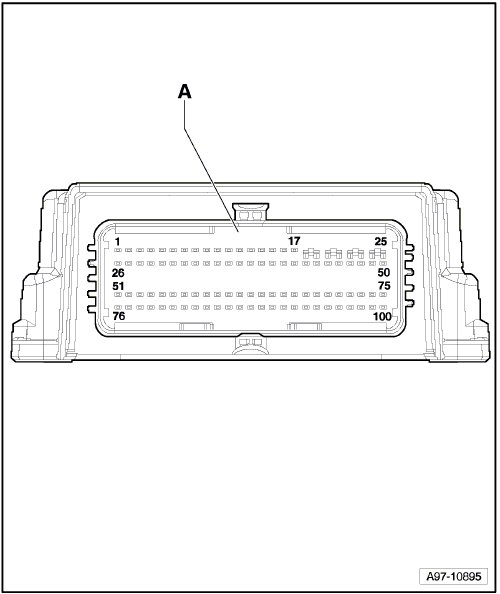

- Airbag Control Module -J234-
Connector:
A - 100-Pin Connector -T100-
A - 100-Pin Connector -T100a-
