Towing Module: Service and Repair

Towing Recognition Control Module

Component location is in luggage compartment at rear, right side, below side trim

Removing






- If the control module was replaced, select the Replace function for the respective control module in Guided Fault Finding or Guided Functions.

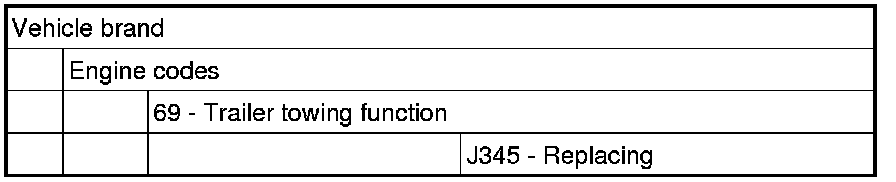

- Select the function or path






- Follow the instructions on the Vehicle Diagnosis Tester display.

- Remove luggage compartment right side trim.

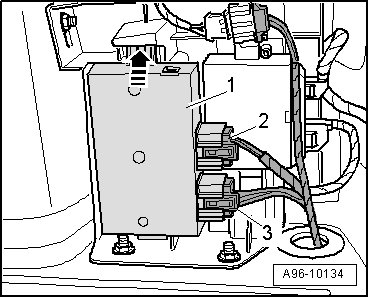

- Disconnect electrical connectors - 2 - and - 3 -.

- Release clip - arrow - and pull towing recognition control module (J345) - item 1 - out of mounting frame.

Installing

Install in reverse order of removal, noting the following:

- Install luggage compartment right side trim.
