Model Year 2007-Up







Control Modules in Interior of Vehicle

Radio -R- / Radio/Navigation Display Control Module -J503- (RNS-Low)

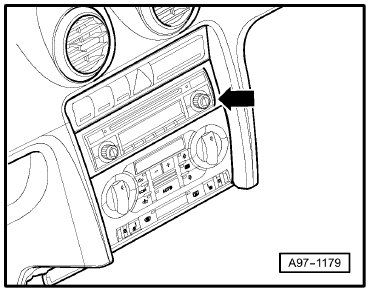

Component Location:


In the center console -Arrow-
