Antenna Control Module: Service and Repair

Left Antenna Module

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove the rear lid lower trim panel.

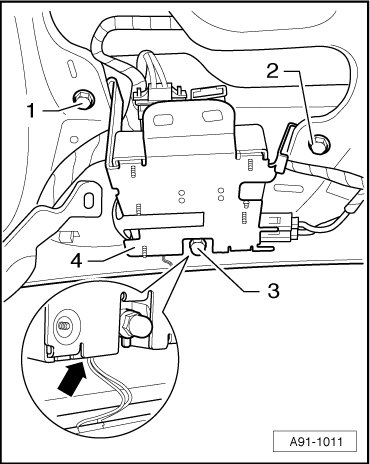

- Disconnect all the connectors from the left antenna module (R108).

- Pay attention to the connector leading to the rear window - arrow -.





- Loosen the nut - 3 - (6 Nm).

- Remove the screws - 1 - and - 2 - (6 Nm).

- Remove the left antenna module from the rear lid.

Installing

- Install in reverse order of removal.

- Pay attention to the connector leading to the rear window - arrow -.
