Direct Shift Gearbox 02E







Control modules in front part of vehicle

Direct Shift Gearbox (DSG) Mechatronic -J743-









Component Location:


On transmission

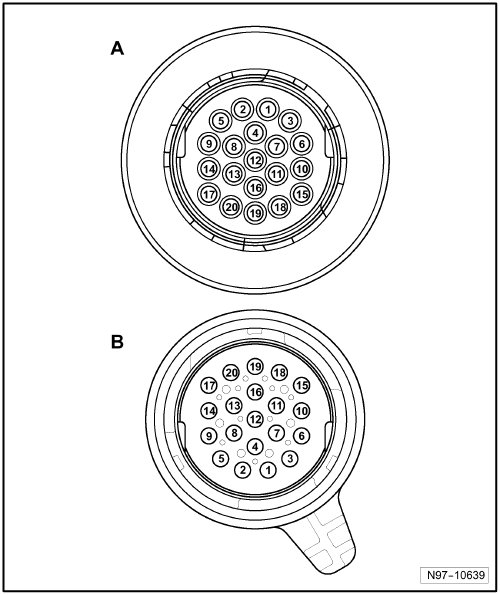

Pin Arrangements:







A - Direct Shift Gearbox (DSG) Mechatronic -J743-
Connector:

B - 20-Pin Connector -T20e-
