Flexible Fuel Sensor: Diagrams






Engine Management System - Connector Views

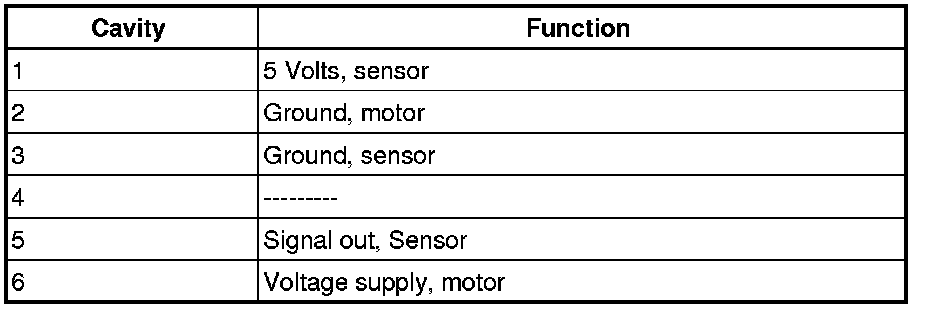

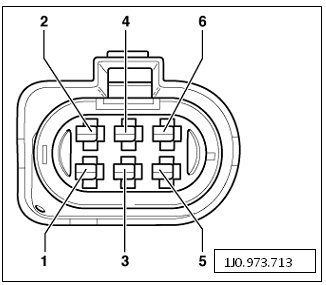

Fuel quality sensor -G446- / EGR valve 2 -N213-



2.0L TDI - CBEA
