Ignition Coil: Diagrams

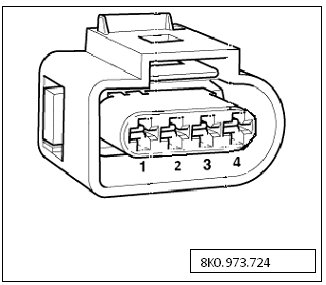

Engine Management System - Connector Views

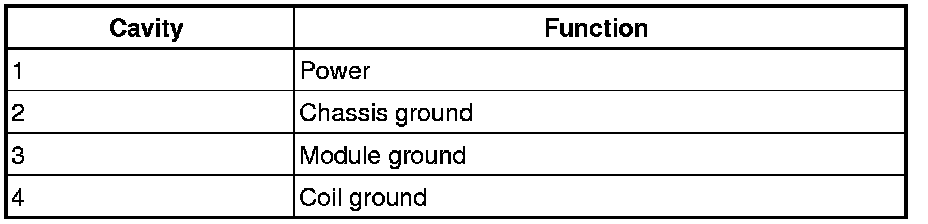

Ignition Coils



2.0L - BPY, CBFA, CCTA; 3.2L - BUB, CBRA
