Special Tools

Special Tools

Special tools, testers and auxiliary items required

• Pliers (3314)






• Ring Spanner 7-Piece Set (3337)






• Puller (T10055) with Adapter (T10055/1)






• Guide Sleeve (T10377)

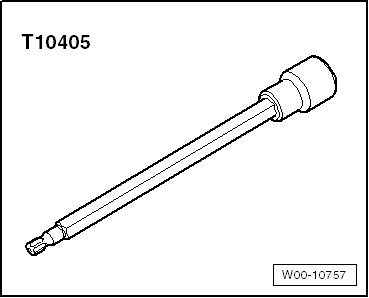

• Socket TORX T 30 (T10405) for vehicles with a plastic intake manifold

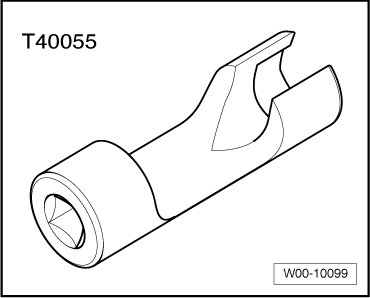

• Socket (T40055)

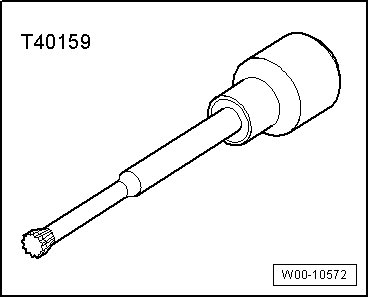

• Socket XZN 8 (T40159)






• Socket 27 mm (T40218)






• Fuel Inj. Pressure Gauge-CIS (V.A.G 1318)






• Torque Wrench 5-50 Nm (V.A.G 1331)






• Ratchet, Reversible (V.A.G 1331/1)






• Tool Insert, AF 17 (V.A.G 1331/6)

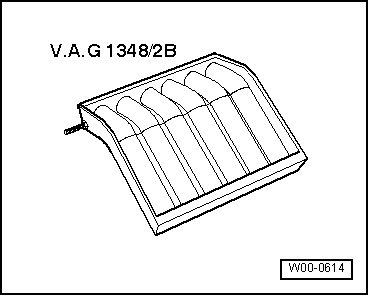

• Fuel Measuring Unit (V.A.G 1348/2 B)






• Adapter Lead 60-Pin (V.A.G 1598/39-1)

• Adapter Lead 94-Pin (V.A.G 1598/39-2)

• Test Box 105 Pin (V.A.G 1598/42)






• Heat Air Blower (VAS 1978/14A) - item 1 - with nozzle attachment - 2 - from the Wiring Harness Repair Set (VAS 1978 B)

• Small commercially available locking pliers - 3 -






• Hand Vacuum Pump (VAS 6213)






• Tester for Fuel Return System (VAS 6330)






• Not illustrated:

• Hose Clamps Up to 25 mm Dia. (3094)

• Camshaft Gear Counter-Holder (T10051)

• Puller (T10369)

• Puller (T40064)

• Pressure Pad for T40064 Tool (T40064/1)

• Socket Head Bolt (T40064/2)

• Plug (T40204)
