Fuel Supply System

Special Tools

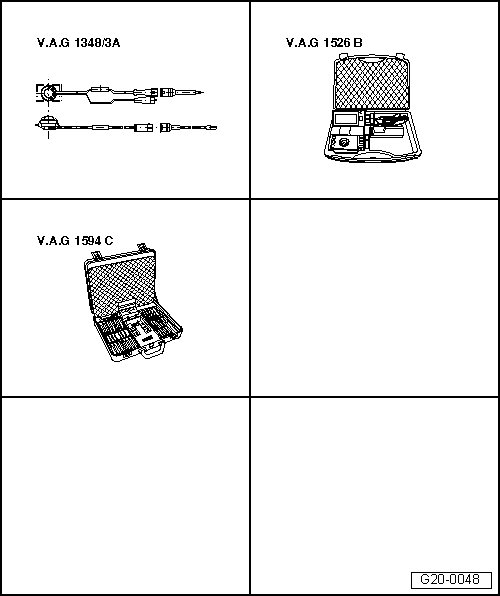

Special tools, testers and auxiliary items required

• Remote Control Connection () with Adapter Cable (V.A.G 1348/3-3)

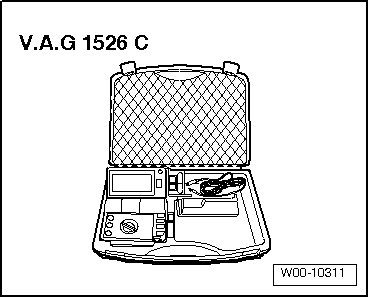

• Hand-Held Multimeter (V.A.G 1526C)

• Connector Test Set (V.A.G 1594C)

Special tools, testers and auxiliary items required

• Fuel Extracting Device (VAS 5190)

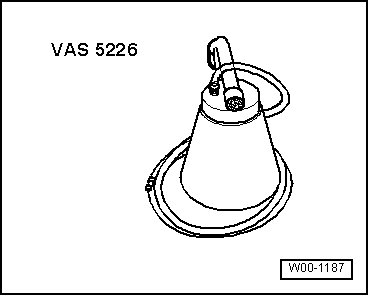

• Suction Pump (VAS 5226)






• Hand Vacuum Pump (VAS 6213)






• Hand-Held Multimeter (V.A.G 1526C)






• Vehicle Diagnostic, Testing and Information System (VAS 5051B) with Diagnostic Cable (VAS 5051/5A)






• Engine/Transmission Jack (V.A.G 1383 A)






• Wrench (T10202)






• Hose Clip Pliers (V.A.G 1921)






• Release Tool (T10238)
















Edition 4 27 2012
