Data Bus On Board Diagnostic Interface Assembly Overview
Data Bus On Board Diagnostic Interface Assembly Overview

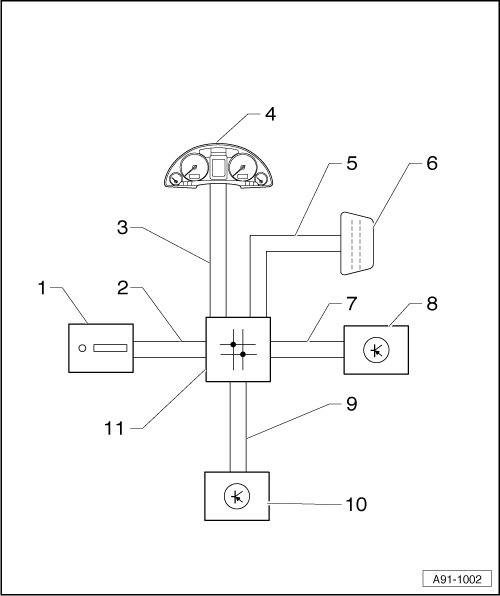

• Control modules connected to the CAN BUS systems,
1 Radio
2 CAN-Bus Infotainment
3 CAN-Bus Instrument Cluster
4 Instrument Cluster Control Module (J285)
• Instrument Cluster
5 CAN-Bus Diagnosis
6 Diagnostic Connection
• 16-pin connector
7 CAN-Bus Comfort
8 Comfort System Central Control Module (J393)
9 CAN-Bus Drive
10 Engine Control Module
11 Data Bus On Board Diagnostic Interface (J533)
• Gateway
