Multiple Junction Connector: Diagrams

Right Door Cut-Off Connector, Disconnecting

Procedure

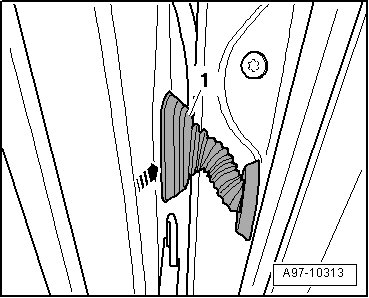

- Press dust protection boot - 1 - at marking - arrow - and pull off.

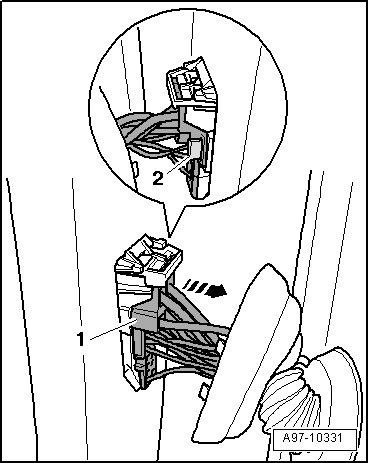

- Release door cut-off connector - 1 - and remove outward - arrow -, press securing guide - 2 - to do so.






- Make sure, connector engages audibly at connection.

- Press on dust protection boot until it engages audibly.

• Check whether rubber lips on protective boot evenly contact A-pillar all around.
