Suppressor

Suppressor

Removing






- With ignition switched off, disconnect battery ground wire. Refer to => [ Battery in Luggage Compartment, Disconnecting and Connecting ] Battery In Luggage Compartment, Disconnecting and Connecting.

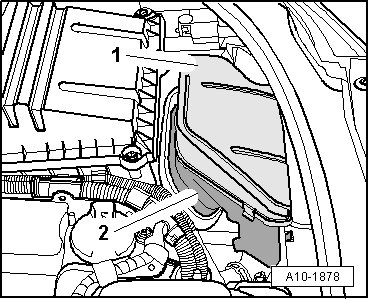

- Remove the air guide cover - 1 -.

- Unclip the air guide - 2 -.

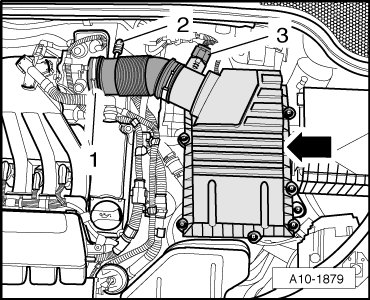

- Remove vacuum hose - 2 - at the air filter guide hose.






- Remove the air guide hose - 1 - on the throttle valve control module (J338).

- Disconnect the mass airflow sensor (G70) connector - item 3 -.

- Remove the air filter housing upper section - arrow -.

- Remove the filter.

- Remove the air filter housing lower section - arrows -.

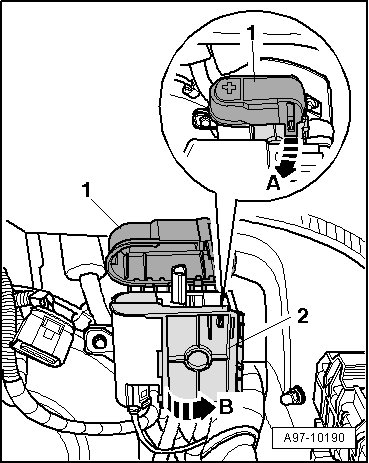

- Disengage retaining clip - arrow A - and open cover - 1 - over positive pole pick-up.






- Disengage cover - 2 - over electrical wires in - direction of arrow B -.

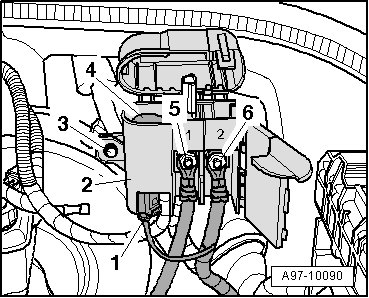

- Remove nuts - 5 - and - 6 - at positive cables.






- Disconnect electrical harness connector - 1 - at suppressor - 4 -.

- Remove the bolt - 3 - and remove positive pole pick-up - 2 - with suppressor from retainer.

Installing

Install in reverse order of removal, observing the following:

- Connect battery. Required actions => Battery In Luggage Compartment, Disconnecting and Connecting.

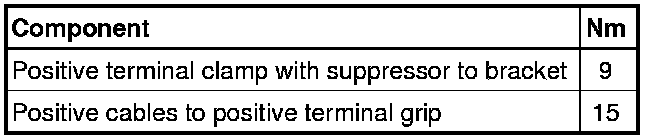

Tightening Specifications
