Plenum Chamber Coupling Station

Plenum Chamber Coupling Station

Removing






- Remove the wiper motor, vehicles through 05.08, refer to => [ Wiper Motor with Wiper Motor Control Module, through 05.2008 ] Wiper Motor With Wiper Motor Control Module, Through 05.2008, vehicles from 06.08, refer to => [ Windshield Wiper Motor with Wiper Motor Control Module, from 06.2008 ] Windshield Wiper Motor With Wiper Motor Control Module, From 06.2008.

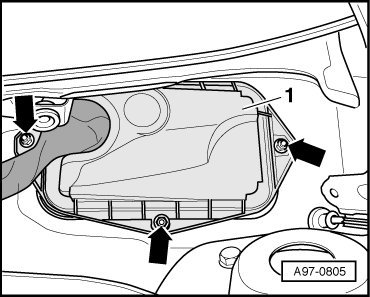

- Remove nuts - arrows -.

- Remove the cover - 1 - from the plenum chamber coupling station.

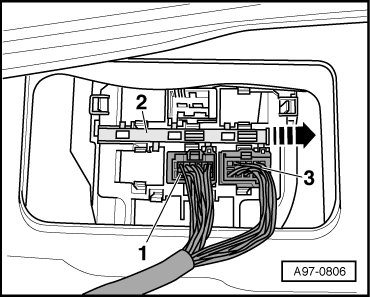

- Push the clamping strip - 2 - for the connectors in - direction of arrow -.






- Disconnect electrical connectors - 1 - and - 3 -.

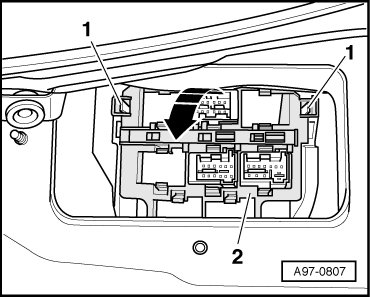

- Release the retaining spring - 1 - and remove the terminal strip - 2 - from the base mount - arrow -.






- Unclip the corresponding connector base.

• Check the exact assignment for connector station E-Box plenum chamber in the current wiring diagram.

Installing

Install in reverse order of removal, noting the following:

- Install the wiper motor, vehicles through 05.08, refer to => [ Wiper Motor with Wiper Motor Control Module, through 05.2008 ] Wiper Motor With Wiper Motor Control Module, Through 05.2008, vehicles from 06.08, refer to => [ Windshield Wiper Motor with Wiper Motor Control Module, from 06.2008 ] Windshield Wiper Motor With Wiper Motor Control Module, From 06.2008.

- Adjust wiper arms. Refer to => [ Windshield Wiper Arms, Adjusting ] Windshield Wiper Arms, Adjusting.

Tightening Specifications
