6-Pin Relay Carrier under Engine Compartment E-Box, through 05.2008

6-Pin Relay Carrier under Engine Compartment E-Box, through 05.2008

Removing

- Remove the air filter housing.

Vehicles with a 4-cylinder engine

- Remove the battery tray. Refer to => [ Battery Tray ] Battery Tray.

Vehicles with a 6-cylinder engine

- With ignition switched off, disconnect battery ground wire. Refer to => [ Battery in Luggage Compartment, Disconnecting and Connecting ] Battery In Luggage Compartment, Disconnecting and Connecting.

Vehicles with old version relay carrier

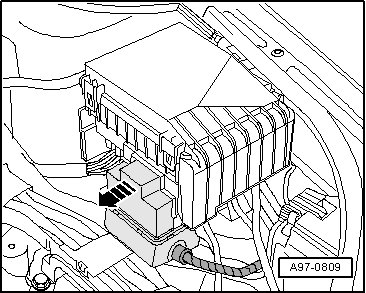

- Remove the 6-pin relay carrier under the engine compartment E-box - arrow -.

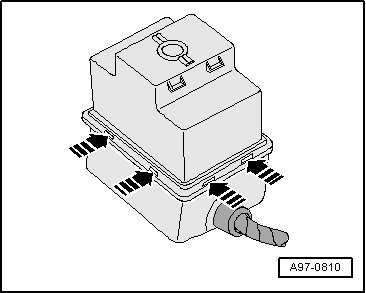

- Remove the 6-pin relay carrier cover - arrows -.

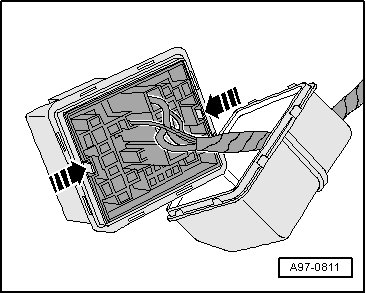

- Release the retaining clips - arrows -.

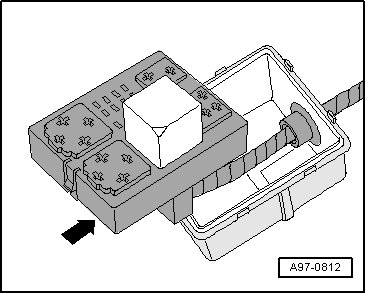

- Remove the 6-pin relay carrier - arrow - from the cover.






• Refer to current wiring diagram for the exact routing of the 6-pin relay carrier under the engine compartment E-box.

Vehicles with the new version relay carrier






- Remove the relay carrier under the engine compartment E-box - arrow -.

Installing

Install in reverse order of removal, noting the following:

Vehicles with a 4-cylinder engine

- Install the battery tray. Refer to => [ Battery Tray ] Battery Tray.

Vehicles with a 6-cylinder engine

- Connect battery. Required actions => Battery In Luggage Compartment, Disconnecting and Connecting.

All Vehicles

- Install the air filter housing.
