Main Fuse Panel In Luggage Compartment

Main Fuse Panel in Luggage Compartment

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing






- With ignition switched off, disconnect battery ground wire. Refer to => [ Battery in Luggage Compartment, Disconnecting and Connecting ] Battery In Luggage Compartment, Disconnecting and Connecting.

- Remove the rear molded insert - 3 - which holds the vehicle tools located under the luggage compartment floor.

- Unhook the retaining strap - 2 - and remove the front molded insert - 1 -.

- Open the flap above the main fuse box in the luggage compartment.

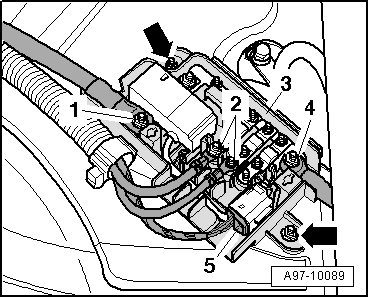

- Disconnect the wires - 1 -, - 2 - and - 4 -.

- Disconnect electrical connector - 5 - for battery interrupt igniter (N253).

- Remove nuts - arrows -.

- Remove the main fuse box in the luggage compartment - 3 -.

• Precise assignment of relay and fuse panel can be seen from appropriate current flow diagram.

Installing

Install in reverse order of removal, noting the following:

- Connect battery. Required actions => Battery In Luggage Compartment, Disconnecting and Connecting.

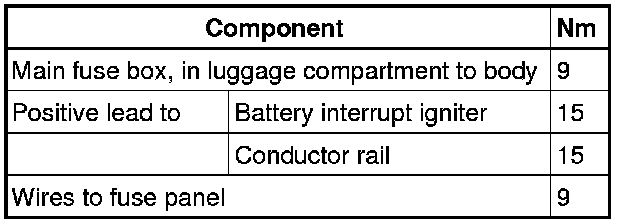

Tightening Specifications
