Diagram 82/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams

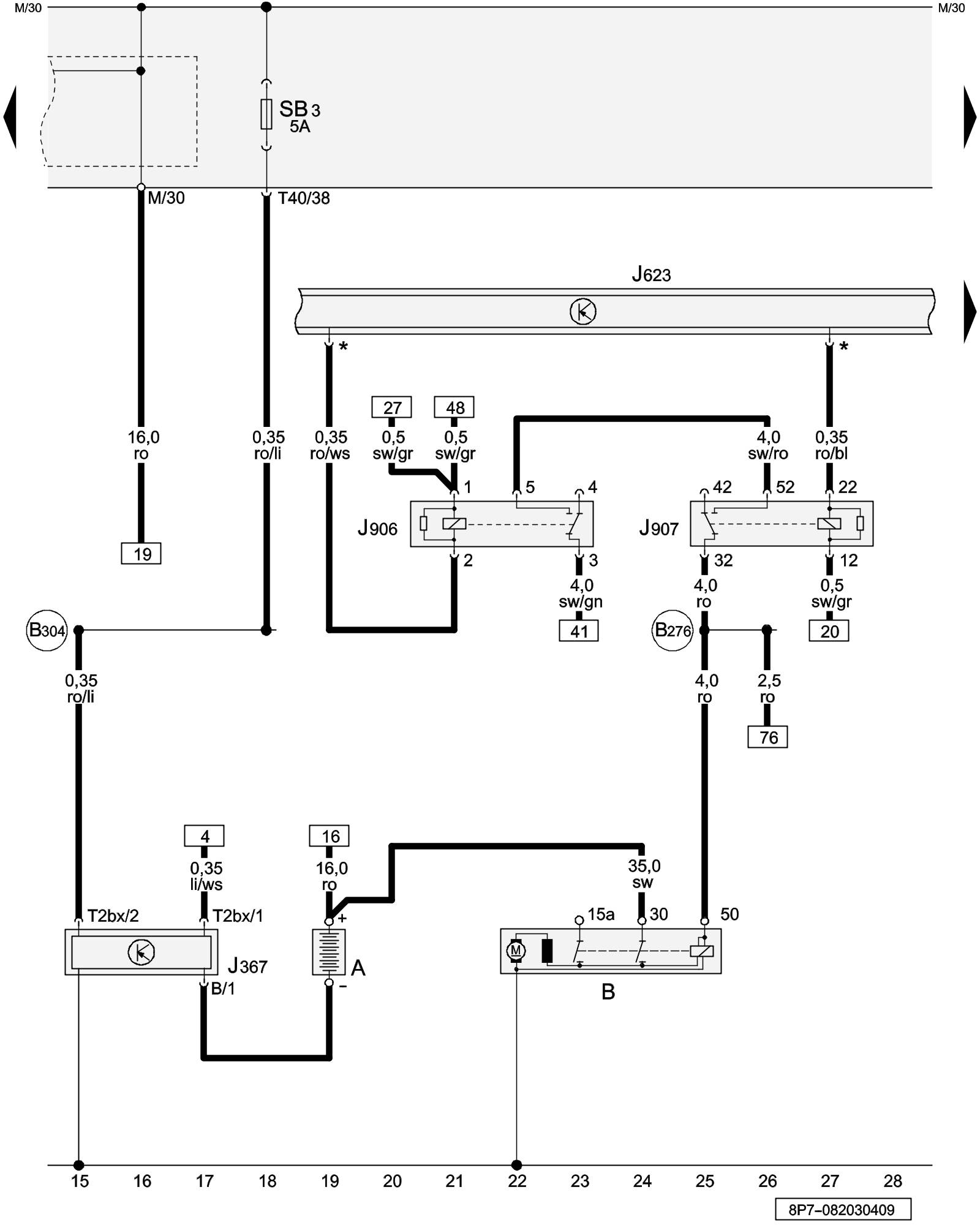

Starter, Battery, Battery Monitoring Control Module, Starter Relay





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

A - Battery

B - Starter

J367 - Battery Monitoring Control Module

J623 - Engine Control Module (ECM) Control Modules in Front Part Of Vehicle

J906 - Starter Relay 1 Overview Of Relay

J907 - Starter Relay 2 Overview Of Relay

SB3 - Fuse 3 (on fuse panel B) Overview Of Fuses

T2bx - Double Connector (Connector C)

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

(B276) - Plus Connection (50) (in main wiring harness)

(B304) - Plus Connection 8 (30) (in main wiring harness)

* - => Applicable Wiring Diagram Engine

Previous Diagram 82/2 (Tracks 1-14)

Next Diagram 82/4 (Tracks 29-42)
