Inner Tail Lamp

Bulb Socket

Removing






- Remove the inner tail lamp. Refer to => [ Inner Tail Lamps ] Inner Tail Lamps.

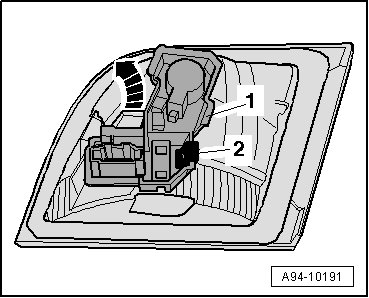

- Remove the clamp - 2 -.

- Spread catches - arrow - and remove bulb socket - 1 -.

- Remove light bulb for rear fog lamp from socket.

- Pull light bulb for back-up lamp out of socket.

Installing

Install in reverse order of removal, noting the following:

- Install the inner tail lamp. Refer to => [ Installing ] Inner Tail Lamps.
