Model Year 2007-Up

Control Modules in Interior of Vehicle

Headlamp Range Control Module -J431-

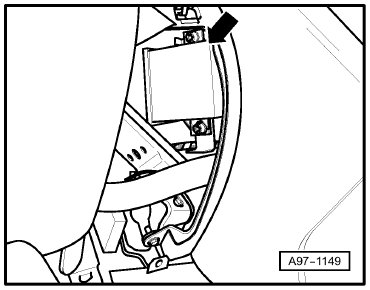

Component Location:


Below instrument panel, right, on left center console -Arrow-


Pin Arrangements:







A - Headlamp Range Control Module -J431-
Connector:

B - 26-Pin Connector -T26a-
