Signal Horn/Dual Tone Horn, Vehicles Without Charge Air Cooler, Through 05.2008

Signal Horn/Dual Tone Horn, Vehicles without Charge Air Cooler, through 05.2008

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing






- Switch off ignition and remove ignition key.

- Remove the noise insulation in the center - attachments 1 through 3 -.

- Remove the noise insulation on the left and right sides - fasteners 1 through 3 -.

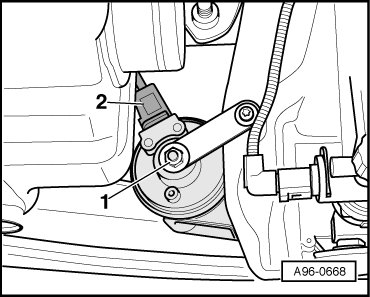

- Disconnect electrical connector - 2 -.






- Remove the nut - 1 - and then remove the signal horn and dual tone horn (H1) from the bracket.

• The left signal horn and dual tone horn is shown in the illustration.

Installing

Install in reverse order.

Tightening Specifications
