Signal Horn/Dual Tone Horn, Vehicles With Charge Air Cooler, Through 05.2008

Signal Horn/Dual Tone Horn, Vehicles with Charge Air Cooler, through 05.2008

Observe notes on contact corrosion. Refer to => [ Contact Corrosion ] Service Precautions.

Removing






Air inlet grille version 1

- Release the hooks - arrows - with a screwdriver and remove the air inlet grille downward and from the bumper.

Air inlet grille version 2






- Release retaining hooks - arrows - with a screwdriver.

- Remove the air inlet grilled form the fog lamp housing and unhook the retaining tab on the bumper.

All

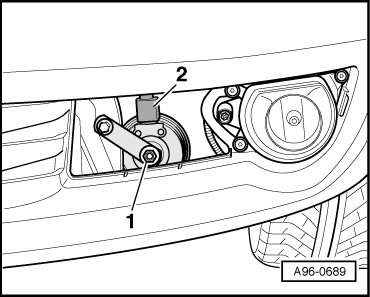

- Disconnect electrical connector - 2 -.

- Remove the nut - 1 - and then remove the signal horn and dual tone horn (H1) from the bracket.

• The left signal horn and dual tone horn is shown in the illustration.

Installing

Install in reverse order.

Tightening Specifications
