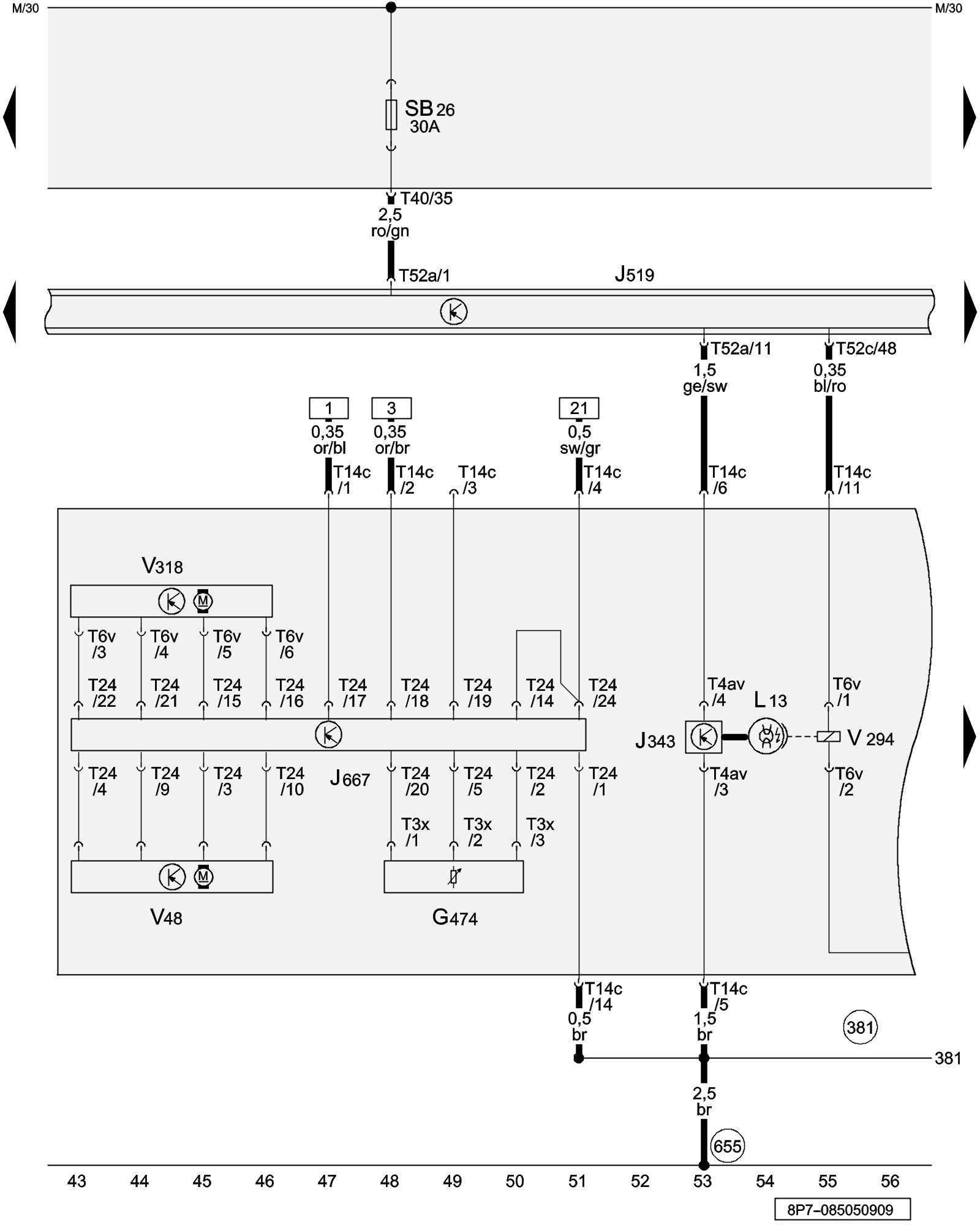

Diagram 85/5 (Tracks 43-56)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. How to Read Track Diagrams


Left High Intensity Gas Discharge (HID) Lamp, Left Headlamp Beam Adjustment Motor, Left Low Beam Reflector Motor, Left Dynamic Cornering Light Motor





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G474 - Left Swivel Module Position Sensor

J343 - Left High-intensity Gas Discharge Lamp Control Module Control Modules in Front Part Of Vehicle

J519 - Vehicle Electrical System Control Module Control Modules in Interior Of Vehicle

J667 - Left Headlamp Power Output Stage Control Modules in Front Part Of Vehicle

L13 - Left High Intensity Gas Discharge (HID) Lamp

SB26 - Fuse 26 (on fuse panel B) Overview Of Fuses

T3x - 3-Pin Connector

T4av - 4-Pin Connector

T6v - 6-Pin Connector

T14c - 14-Pin Connector

T24 - 24-Pin Connector

T40 - 40-Pin Connector, black, on electronics box engine compartment (Connector J)

T52a - 52-Pin Connector, black (Connector A)

T52c - 52-Pin Connector, brown (Connector C)

V48 - Left Headlamp Beam Adjustment Motor

V294 - Left Low Beam Reflector Motor

V318 - Left Dynamic Cornering Light Motor

(381) - Ground Connection 16 (in main wiring harness)

(655) - Ground Connection (on left headlamp)
