Fog Lamp, From 06.2008

Fog Lamp, from 06.2008

Removing






- Switch off ignition and remove ignition key.

- Turn light switch to 0 position.

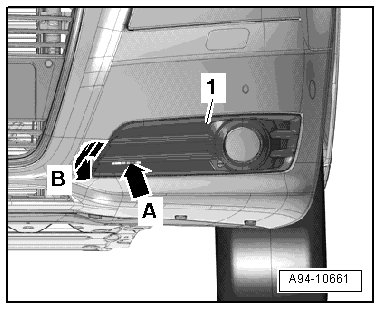

- Reach into the opening - arrow A - remove the lower air inlet grille - 1 - from the bumper - arrow B -.

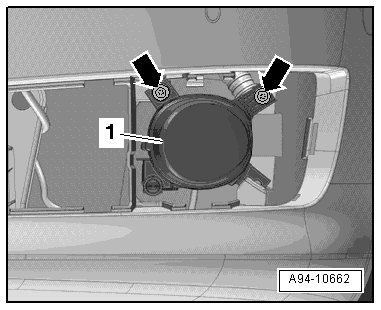

- Remove the bolts - arrows -.






- Remove the fog lamp housing - 1 - from the bumper.

- Disconnect the electrical connector.

Installing

Install in reverse order of removal, observing the following:

- Adjusting fog lamps. Refer to => [ Headlamps, Checking and Adjusting Conditions ] Testing and Inspection.

Tightening Specifications
