Fog Lamp Bulb, From 06.2008

Fog Lamp Bulb, from 06.2008

Removing






- Remove fog lamp. Refer to => [ Fog Lamp, from 06.2008 ] Fog Lamp, From 06.2008.

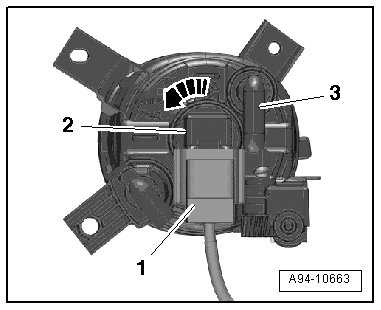

- Disconnect the electrical connector - 1 - on the bulb.

- Remove the vent hose - 3 - on the left side of the fog lamp.

- Rotate the bulb - 2 - counterclockwise - arrow - and remove it from the fog lamp housing.

Installing

Install in reverse order of removal, observing the following:

- Insert the new bulb into the housing without touching the bulb with bare hands.

- Rotate the bulb clockwise to secure.

- Mount the vent hose on the left side of the fog lamp.

- Install fog lamp. Refer to => [ Fog Lamp, from 06.2008 ] Fog Lamp, From 06.2008.
