Fog/Driving Lamp: Adjustments

Fog Lamps, Adjusting

Procedure






- Complete test and adjustment requirements. Refer to => [ Headlamps, Checking and Adjusting Conditions ] Testing and Inspection.

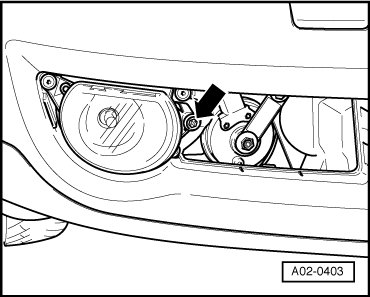

- To adjust headlamp range, turn adjusting screw - arrow -.

• Angle dimension 20 cm (conforms to 2%).

• Side adjustment is not intended.

• Illustrated without the air intake grille.
